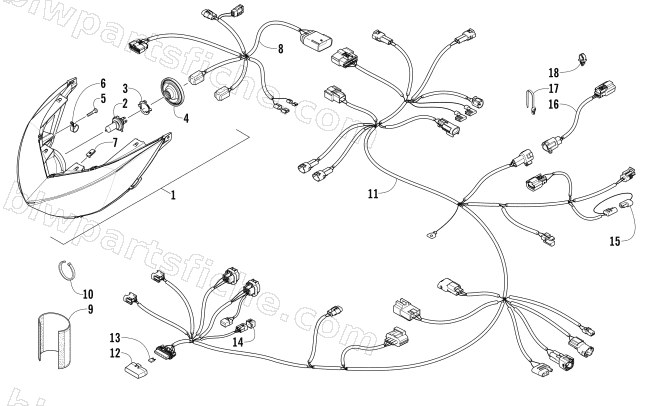

2014 Arctic Cat XF 8000 137 SNO PRO — HEADLIGHT AND WIRING ASSEMBLIES
2014 XF 8000 137 SNO PRO
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0609-899 | R/B 0609-967 | 1 | $417.95 | |
| 2 | 0109-724 | R/B 0609-956 | 1 | $29.95 | |
| 3 | 0409-097 | RETAINER,H/L HS-1 ECE | 1 | $34.95 | |
| 4 | 0609-919 | BOOT,BULB | 1 | $29.95 | |
| 5 | 1623-915 | SCREW,PLASTITE-TSPNH-1/4-10 X 1.25 RIE B | 1 | $1.50 | |
| 6 | 1623-675 | CLAMP,CABLE,11/16 INSUL-1/4" MTG | 1 | $1.92 | |
| 7 | 0423-031 | NUT,SPEED M6 X 1.0 U-TYPE | 1 | $0.95 | |
| 8 | 1686-638 | HARNESS,HOOD-2 STRK | 1 | $126.95 | |
| 9 | 5706-618 | WRAP,WIRE HARNESS-11" X 10.50" | 1 | $22.01 | |
| 10 | 0123-811 | TIE,CABLE-4 INCH PLT1M | 1 | $0.26 | |
| 10 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 10 | 0123-903 | TIE,CABLE 11.50 | 1 | $0.54 | |
| 11 | 1686-723 | HARNESS,MAIN-800 STD/SP | 1 | $978.95 | |
| 12 | 0609-889 | COVER,FUSE HOLDER | 1 | $22.01 | |
| 13 | 0430-068 | FUSE,MINI-7.5 AMP | 1 | $2.95 | |
| 13 | 0430-031 | FUSE, MINI-15A | 1 | $4.54 | |
| 13 | 0430-098 | FUSE,MINI-20A | 1 | $2.95 | |
| 15 | 0486-164 | TETHER,REAR ACCESSORY CONNECTOR | 1 | $12.35 | |
| 16 | 1686-692 | HARNESS, EXTENSION-TAILIGHT-1725MM | 1 | $30.95 | |
| 17 | 0623-677 | CABLE TIE,PUSH MOUNT-X MAS CLIP | 1 | $1.09 | |
| 18 | 0623-101 | ROUTING CLIP,SNAP-IN | 1 | $5.51 |
