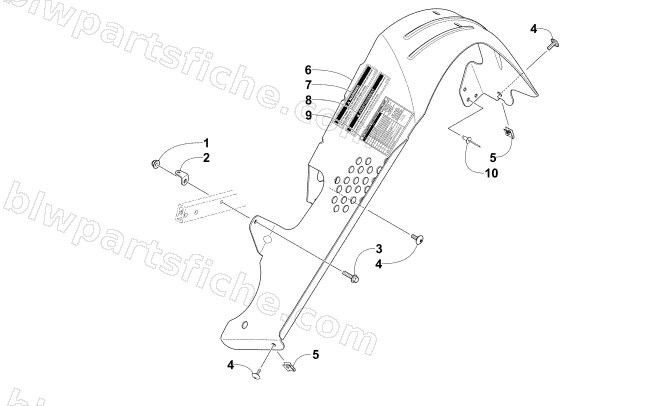

2014 Arctic Cat XF 8000 137 SNO PRO LTD — BELT GUARD ASSEMBLY
2014 XF 8000 137 SNO PRO LTD
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 8427-502 | NUT,HEX FLG-NYL LOCK M5X0.8 CL8 Z&Y | 1 | $0.95 | |
| 2 | 2612-707 | TAB,RESONATOR MTG | 1 | $3.02 | |
| 3 | 8408-525 | SCREW,CAP-HFH M5X0.8X25 CL8.8 Z&Y | 1 | $0.95 | |
| 4 | 0623-797 | SCREW,SELF TAP-TSTH 10-12X1/2 WO/GP | 1 | $0.45 | |
| 5 | 1623-052 | NUT,U | 1 | $0.95 | |
| 6 | 2707-275 | GUARD,CLUTCH-W/WARNING DECALS | 1 | $102.95 | |
| 7 | 9611-690 | DECAL,WARNING-GUARD-ENGLISH | 1 | $3.16 | |
| 8 | 9611-691 | DECAL,WARNING-GUARD-FRENCH (9611-690) | 1 | $3.16 | |
| 9 | 9611-743 | DECAL,EFI DIAGNOSTIC CODES | 1 | $6.47 | |
| 10 | 8060-686 | RIVET,BLIND-DH SS64 ZINC | 1 | $0.40 |
