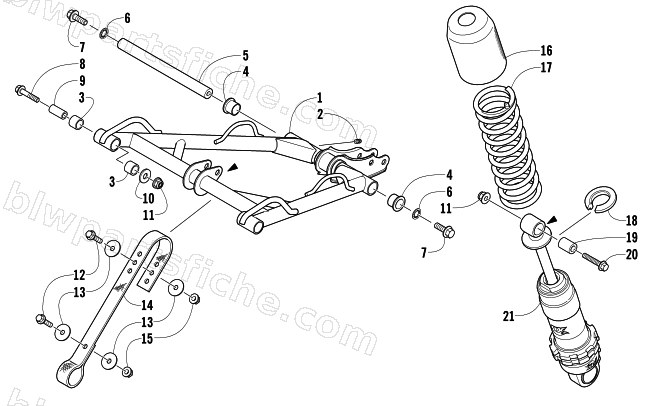

2014 Arctic Cat XF 7000 141 CROSS-TOUR — REAR SUSPENSION FRONT ARM ASSEMBLY
2014 XF 7000 141 CROSS-TOUR
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2704-068 | ARM,FRT-W/PIVOT-BLK FABR | 1 | $324.95 | |
| 2 | 1623-010 | FIT,GREASE-1/4-28 UNF-SELF THREAD | 1 | $1.92 | |
| 3 | 0604-889 | BUSHING,FRONT ARM | 1 | $3.71 | |
| 4 | 3604-028 | BUSHING, FLARED -BRONZE .735" x .751 ID | 1 | $3.57 | |
| 5 | 3604-634 | AXLE,ALUM-19.05 X 219.35-MACH | 1 | $19.25 | |
| 6 | 1623-992 | WASHER,LOCK-M10 INTL TOOTH TYP J Z&C | 1 | $0.26 | |
| 7 | 8413-031 | SCREW,CAP-HFH M10X1.25X30 CL10.9 W/2353 | 1 | $2.61 | |
| 8 | 8408-065 | SCREW,CAP-HFH M10X1.25X65 CL8.8 Z&Y | 1 | $3.16 | |
| 9 | 3604-665 | AXLE,FRONT ARM-15.88OD X 10.3ID X 41.6MM | 1 | $19.25 | |
| 10 | 8450-163 | WASHER,FLAT-M10-11.12X28.00 X 2.80Z&Y | 1 | $0.95 | |
| 11 | 8427-002 | NUT,HEX FLG-NYL LOCK M10X1.25 CL8 Z&Y | 1 | $0.95 | |
| 12 | 8408-630 | SCREW,CAP-HFH M6X1.0X30 CL8.8 Z&Y | 1 | $0.95 | |
| 13 | 8450-109 | WASHER,FLAT M6-6.87X25.4X2.32 Z&Y | 1 | $0.68 | |
| 14 | 4604-132 | STRAP,LIMITER-1.25" X 16.50" | 1 | $10.95 | |
| 15 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 16 | 0604-790 | COVER,SUSPENSION SPRING (SHORT) | 1 | $24.77 | |
| 17 | 1704-236 | SPRING,COMP-FRT ARM -110#-PTD BLK | 1 | $49.95 | |
| 18 | 3604-200 | RETAINER,SPRING-POWDER METAL | 1 | $6.06 | |
| 19 | 3604-273 | AXLE,SHOCK-FRT ARM-M10 | 1 | $2.88 | |
| 20 | 8408-045 | SCREW,CAP-HFH M10X1.25X45 CL8.8 Z&Y | 1 | $4.68 | |
| 21 | 2704-405 | R/B 2704-699 | 1 | $153.95 |
