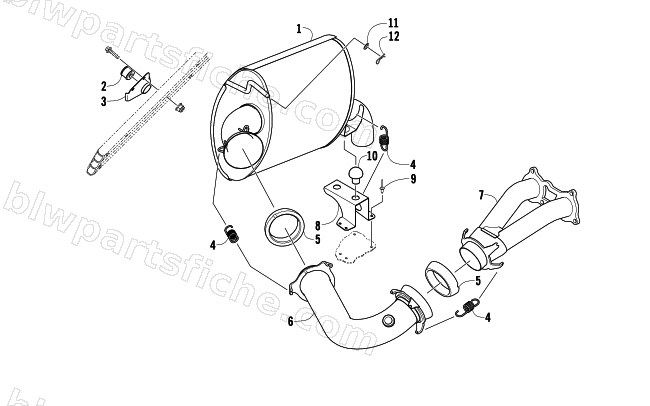

EXHAUST ASSEMBLY
2014 TZ1
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1712-611 | RESONATOR,EXHAUST-ASSY-PTD BLK | 1 | $694.95 | |
| 2 | 0412-577 | BUSHING,MUFFLER | 1 | $2.88 | |
| 3 | 1712-597 | BRKT, RESONATOR MTG-PTD | 1 | $24.77 | |
| 4 | 2612-399 | SPRING,EXTENSION | 1 | $3.71 | |
| 5 | 2612-059 | GASKET, EXHAUST - HEADPIPE | 1 | $30.95 | |
| 6 | 1712-576 | PIPE,EXHAUST-WELD'T | 1 | $258.95 | |
| 7 | 1712-525 | MANIFOLD,WELD'T-MACH | 1 | $412.95 | |
| 8 | 1712-606 | BRKT, EXHAUST-PTD | 1 | $22.01 | |
| 9 | 8060-686 | RIVET,BLIND-DH SS64 ZINC | 1 | $0.40 | |
| 10 | 0612-111 | BUMPER,MOLDED-RUBBER | 1 | $16.49 | |
| 11 | 8050-282 | WASHER,FLAT- 3/8 X 1.000 X .063 Z&Y | 1 | $0.95 | |
| 12 | 1623-137 | CLIP,HAIRPIN | 1 | $0.95 |
