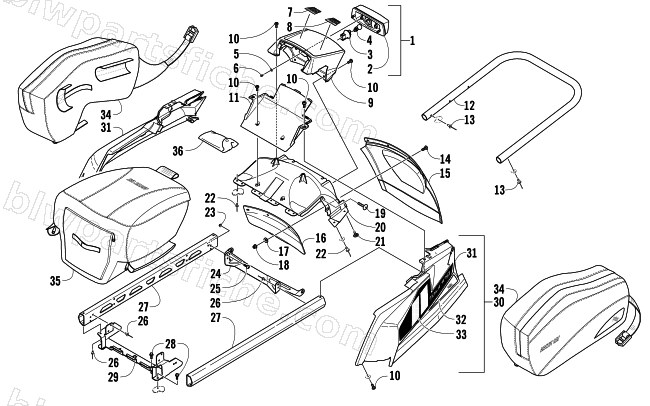

2014 Arctic Cat TZ1 LXR — REAR BUMPER, RACK RAIL, SNOWFLAP, AND TAILLIGHT ASSEMBLY
2014 TZ1 LXR
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0509-022 | TAILLIGHT,ASSY | 1 | $82.95 | |
| 2 | 0509-025 | HOUSING,TAILLIGHT-ASSY | 1 | $66.95 | |
| 3 | 0409-057 | SOCKET,TAIL LIGHT | 1 | $15.11 | |
| 4 | 0409-056 | BULB,TAIL LIGHT-3157 | 1 | $19.25 | |
| 5 | 8050-127 | WASHER,FLAT- #8 X .375 X .049 Z&Y | 1 | $1.37 | |
| 6 | 0623-257 | SCREW,SELF TAP-HWH #8X1/2 TYPE A | 1 | $1.09 | |
| 7 | 7611-433 | DECAL,WARNING-TOWING/TRACK-ENGLISH | 1 | $15.11 | |
| 8 | 7611-432 | DECAL,WARNING-TOWING/TRACK-FRENCH | 1 | $15.11 | |
| 9 | 5706-272 | HOOD,TAILLIGHT-PTD METALLIC BLK | 1 | $109.95 | |
| 10 | 1623-661 | SCREW,PT THD-TSTRH K60-2.69X16MM RIE BLK | 1 | $2.33 | |
| 11 | 5706-273 | PANEL,TAILLIGHT ACCESS-PTD METALLIC BLK | 1 | $74.95 | |
| 12 | 1707-260 | BUMPER, REAR-PTD BLK | 1 | $142.95 | |
| 13 | 1623-241 | RIVET,3/16 HUCK-M6 | 1 | $1.92 | |
| 14 | 1623-782 | SCREW,MACH-TSTRH M6X1.0X20 RIE BLK | 1 | $1.92 | |
| 15 | 5606-254 | SNOWFLAP, BLK-W/8611-268 | 1 | $84.95 | |
| 16 | 3606-776 | SUPPORT,SNOWFLAP-INJ MOLD | 1 | $45.95 | |
| 17 | 0623-184 | WASHER,FLAT 1/4 X 1.0 Z&Y | 1 | $1.95 | |
| 18 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 19 | 1623-700 | SCREW, SELF TAPPING-M8X42 TRILOBE Z&Y | 1 | $3.16 | |
| 20 | 5606-056 | CLOSE-OFF, TUNNEL-MOLD BLK | 1 | $46.95 | |
| 21 | 0623-784 | R/B 2623-163 | 1 | $0.35 | |
| 22 | 8061-506 | RIVET,BLIND-LF SS54 BLACK | 1 | $0.95 | |
| 23 | 8427-502 | NUT,HEX FLG-NYL LOCK M5X0.8 CL8 Z&Y | 1 | $0.95 | |
| 24 | 3706-989 | MOUNT, RAIL-REAR-PTD BLK | 1 | $102.95 | |
| 25 | 8470-516 | SCREW,MACH-TSPNH M5X.8X16 CL8.8 Z&Y | 1 | $0.26 | |
| 26 | 8060-686 | RIVET,BLIND-DH SS64 ZINC | 1 | $0.40 | |
| 27 | 4706-482 | RAIL, RACK-MACH | 1 | $92.95 | |
| 28 | 8408-620 | SCREW,CAP-HFH M6X1.0X20 CL8.8 Z&Y | 1 | $1.37 | |
| 29 | 4706-017 | BRKT, RAIL MOUNT-FRT-PTD BLK | 1 | $82.95 | |
| 30 | 3718-970 | FENDER,REAR-RH-MET BLK W/DECAL | 1 | $160.95 | |
| 30 | 3718-971 | FENDER,REAR-LH-MET BLK W/DECAL | 1 | $160.95 | |
| 31 | 3718-406 | FENDER,REAR-RH-MET BLK W/O DECALS | 1 | $156.95 | |
| 31 | 3718-407 | FENDER,REAR-LH-MET BLK W/O DECALS | 1 | $156.95 | |
| 32 | 8611-304 | DECAL,REFLECTOR-RED-RH (TOUR) | 1 | $20.63 | |
| 32 | 8611-305 | DECAL,REFLECTOR-RED-LH (TOUR) | 1 | $20.63 | |
| 33 | 0621-630 | DECAL,REAR BUMPER-RH | 1 | $32.95 | |
| 33 | 0621-631 | DECAL,REAR BUMPER-LH | 1 | $120.95 | |
| 34 | 5606-173 | SADDLEBAG, SIDE-LH | 1 | $241.95 | |
| 35 | 5606-171 | SADDLEBAG, REAR | 1 | $288.95 | |
| 36 | 5706-054 | BAG,TOOL KIT-ASSY | 1 | $33.95 |
