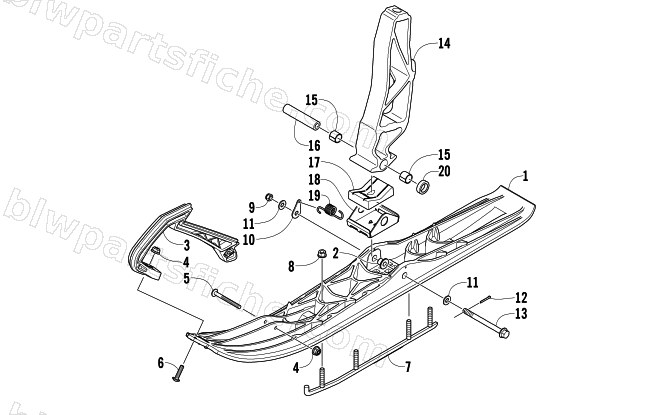

2014 Arctic Cat SNO PRO 500 — SKI AND SPINDLE ASSEMBLY
2014 SNO PRO 500
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2603-599 | R/B 3703-940 | 1 | $228.95 | |
| 2 | 2603-746 | INSERT, SKI - 10 MM | 1 | $2.47 | |
| 3 | 2603-950 | HANDLE,PLASTIC SKI-BLK | 1 | $33.95 | |
| 4 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 5 | 8476-650 | SCREW,MACH-TSTRH M6X1.0X50 Z&Y | 1 | $1.50 | |
| 6 | 8476-625 | SCREW,MACH-TSTRH M6X1.0X25 Z&Y | 1 | $1.78 | |
| 7 | 0703-871 | SKAG, 4" CARBIDE-PTD BLK | 1 | $62.95 | |
| 8 | 8047-486 | NUT,HEX FLG-NY LOCK 3/8-16 GR F Z&Y | 1 | $0.95 | |
| 9 | 0423-744 | NUT,HEX FLANGE-NSL M10X1.25 W/ 204 PATCH | 1 | $1.92 | |
| 10 | 6606-205 | WASHER,SPRING HOLD | 1 | $2.06 | |
| 11 | 1623-801 | WASHER,FLAT-M10-10.98 X 28.00 X 1.6 Z&Y | 1 | $0.95 | |
| 12 | 0123-458 | PIN,COTTER 1/8X1 | 1 | $0.40 | |
| 13 | 1623-781 | BOLT,SKI-HFH M10- 1.25 X 137 CL10.9 | 1 | $5.65 | |
| 14 | 2703-560 | SPINDLE,RH-FABR | 1 | $289.95 | |
| 14 | 2703-561 | SPINDLE,LH-FABR | 1 | $289.95 | |
| 15 | 2603-481 | BEARING,GARLOCK (12DU16) | 1 | $2.75 | |
| 16 | 2603-813 | AXLE,SPINDLE-ALUM- 75MM (2.96") | 1 | $24.77 | |
| 17 | 2603-824 | DAMPER,SKI-RUBBER | 1 | $17.87 | |
| 18 | 2603-894 | PLATE,DAMPER | 1 | $30.95 | |
| 19 | 3606-549 | SPRING,SEAT STRAP | 1 | $16.49 | |
| 20 | 2603-932 | SPACER,SPINDLE-SKI-MACH | 1 | $5.09 |
