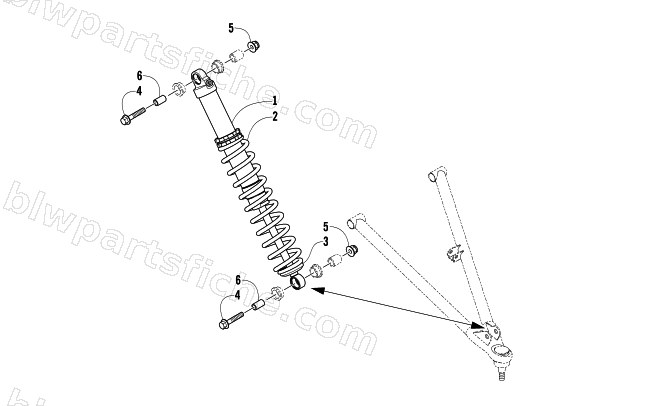

2014 Arctic Cat SNO PRO 500 — SHOCK ABSORBER ASSEMBLY
2014 SNO PRO 500
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2703-809 | SHOCK,SKI-FOX | 1 | $436.95 | |
| 2 | 2703-406 | SPRING,COMP-145 LB X 13"-PTD WHT | 1 | $77.95 | |
| 2 | 2703-386 | SPRING,COMP-160 LB X 13"-PTD WHT | 1 | $142.95 | |
| 2 | 2703-387 | SPRING,COMP-190 LB X 13"-PTD WHT | 1 | $145.95 | |
| 2 | 2703-385 | SPRING,COMP-175 LB X 13"-PTD WHT | 1 | $142.95 | |
| 3 | 3604-200 | RETAINER,SPRING-POWDER METAL | 1 | $6.06 | |
| 4 | 8408-045 | SCREW,CAP-HFH M10X1.25X45 CL8.8 Z&Y | 1 | $4.68 | |
| 5 | 8427-002 | NUT,HEX FLG-NYL LOCK M10X1.25 CL8 Z&Y | 1 | $0.95 | |
| 6 | 3604-109 | SLEEVE,SHOCK EYELET-10mm ID | 1 | $4.40 |
