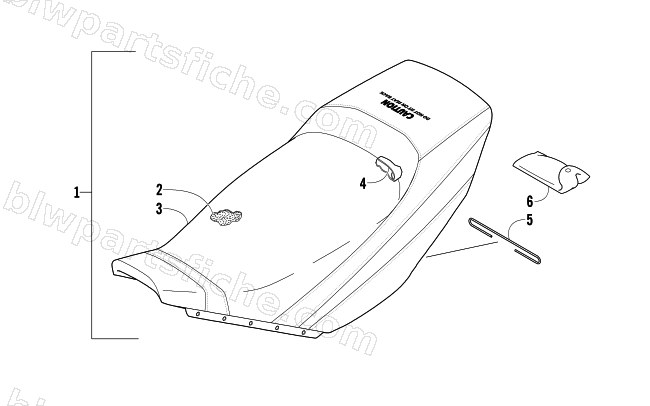

2014 Arctic Cat SNO PRO 500 — SEAT ASSEMBLY
2014 SNO PRO 500
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3718-749 | SEAT,ASSY-SP 500 | 1 | $465.95 | |
| 2 | 0717-200 | FOAM,SEAT-.50R/3.5(85-90 ILD) | 1 | $145.95 | |
| 3 | 5706-481 | COVER,SEAT-13' SP 500 | 1 | $333.95 | |
| 5 | 5606-380 | WIRE,SEAT - 279 MM - FORMED | 1 | $2.88 | |
| 6 | 4706-887 | BAG,TOOL KIT-ASSY (2010 SNO PRO 500) | 1 | $33.95 |
