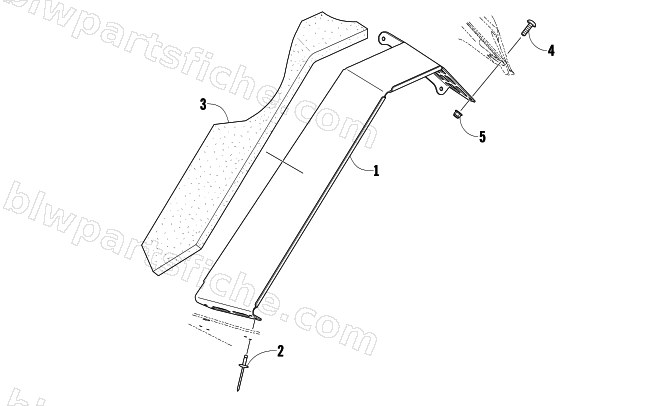

2014 Arctic Cat SNO PRO 500 — BELT GUARD ASSEMBLY
2014 SNO PRO 500
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0607-968 | GUARD,CLUTCH | 1 | $122.95 | |
| 2 | 8061-708 | RIVET, BLIND-LF SS66 BLACK | 1 | $0.95 | |
| 3 | 0617-588 | FOAM,CLUTCH GUARD-UPR | 1 | $68.95 | |
| 4 | 8476-620 | SCREW,MACH-TSTRH M6X1.0X20 Z&Y | 1 | $0.40 | |
| 5 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 |
