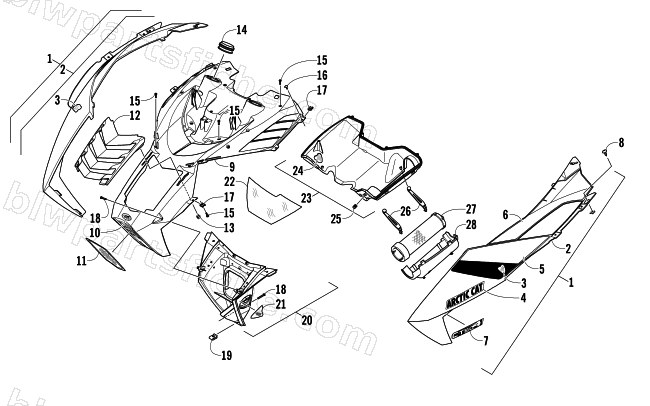

2014 Arctic Cat M 9000 SNO PRO LTD 162 — HOOD AND AIR INTAKE ASSEMBLY
2014 M 9000 SNO PRO LTD 162
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 4718-042 | HOOD,W/DECALS-RH-ORN (TRB LTD) | 1 | $216.95 | |
| 1 | 4718-043 | HOOD,W/DECALS-LH- ORN (TRB LTD) | 1 | $216.95 | |
| 1 | 4718-056 | HOOD,W/DECALS-RH-BLK/WHT (TRB LTD) | 1 | $209.95 | |
| 1 | 4718-057 | HOOD,W/DECALS-LH-BLK/WHT (TRB LTD) | 1 | $209.95 | |
| 2 | 3718-616 | HOOD,W/FOIL-4 STRK RH-ORN | 1 | $163.95 | |
| 2 | 3718-617 | HOOD,W/FOIL-LH-ORN | 1 | $163.95 | |
| 2 | 3718-486 | HOOD,W/FOIL-4 STRK RH-BLK | 1 | $150.95 | |
| 2 | 3718-313 | HOOD,W/FOIL-LH-BLK | 1 | $159.95 | |
| 3 | 6606-420 | FOIL,HOOD-RH | 1 | $3.02 | |
| 3 | 6606-415 | FOIL,PROTECTIVE-HOOD-LH | 1 | $4.40 | |
| 4 | 2411-501 | DECAL,FRONT-"ARCTIC CAT" (350/425) | 1 | $10.97 | |
| 5 | 0621-834 | DECAL,HOOD-MID-RH (LTD ORN) | 1 | $24.77 | |
| 5 | 0621-835 | DECAL,HOOD-MID-LH (LTD ORN) | 1 | $24.77 | |
| 5 | 0621-868 | DECAL,HOOD-MID-RH (LTD WHT) | 1 | $24.77 | |
| 5 | 0621-869 | DECAL,HOOD-MID-LH (LTD WHT) | 1 | $24.77 | |
| 6 | 0621-836 | DECAL,HOOD-REAR-RH (LTD ORN) | 1 | $33.95 | |
| 6 | 0621-837 | DECAL,HOOD-REAR-LH (LTD ORN) | 1 | $33.95 | |
| 6 | 0621-870 | DECAL,HOOD-REAR-RH (LTD WHT) | 1 | $37.95 | |
| 6 | 0621-871 | DECAL,HOOD-REAR-LH (LTD WHT) | 1 | $37.95 | |
| 7 | 0621-993 | DECAL,HOOD-"CTEC4"-TA GRN | 1 | $4.40 | |
| 8 | 0623-784 | R/B 2623-163 | 1 | $0.35 | |
| 9 | 6606-276 | R/B 6706-152 | 1 | $251.95 | |
| 10 | 9611-751 | DECAL,EMBLEM-CHROME | 1 | $42.95 | |
| 11 | 0608-696 | SCREEN,PLENUM | 1 | $20.63 | |
| 12 | 6606-388 | GRILLE,INTERCOOLER-BLK | 1 | $24.77 | |
| 13 | 1623-765 | CLIP,RETAINING-HOOD | 1 | $1.50 | |
| 14 | 6606-386 | SEAL,UPPER PLENUM | 1 | $3.57 | |
| 15 | 1623-933 | SCREW,PLASTITE-TXSPNH 10-14X3/4 Z&B | 1 | $0.26 | |
| 16 | 0623-797 | SCREW,SELF TAP-TSTH 10-12X1/2 WO/GP | 1 | $0.45 | |
| 17 | 1623-939 | NUT,SPEED-#10 B "U" TYPE | 1 | $1.23 | |
| 18 | 1623-129 | R/B 2623-166 | 1 | $0.35 | |
| 19 | 1623-637 | CLIP,U-NUT (M5) | 1 | $2.47 | |
| 20 | 5706-991 | PLENUM,AIR INTAKE-LWR FRT-W/REFLECTOR(T) | 1 | $66.95 | |
| 21 | 0621-989 | DECAL,REFLECTOR-AMBER | 1 | $15.11 | |
| 22 | 6606-421 | FOIL,INTAKE PLENUM-UPPER | 1 | $2.88 | |
| 23 | 5706-380 | PLENUM,INTAKE-LWR-REAR-W/FOIL | 1 | $70.95 | |
| 24 | 6606-422 | FOIL,INTAKE PLENUM-LOWER-TURBO | 1 | $5.51 | |
| 25 | 1623-023 | NUT,SPEED-#10-32 U TYPE | 1 | $1.50 | |
| 26 | 6606-392 | STRAP,HOLD-DOWN-RUBBER | 1 | $2.88 | |
| 27 | 2670-265 | FILTER,AIR (TURBO) | 1 | $45.95 | |
| 28 | 6606-365 | COVER,AIR FILTER | 1 | $29.95 |
