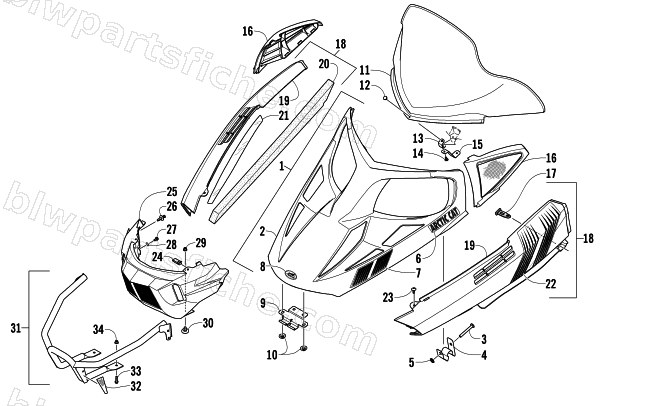

2014 Arctic Cat BEARCAT 570 XT — HOOD, WINDSHIELD, AND FRONT BUMPER ASSEMBLY
2014 BEARCAT 570 XT
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3718-276 | LID,HOOD-WHT W/DECALS | 1 | $266.95 | |
| 1 | 3718-278 | LID,HOOD-WHT-W/O VENTS-W/DECALS | 1 | $274.95 | |
| 2 | 7800-956 | LID,HOOD-WHT-W/O VENTS-MFG ASSY | 1 | $181.95 | |
| 3 | 1623-610 | PIN,RETAINING-HOOD | 1 | $22.01 | |
| 4 | 5706-084 | CLIP,HOLDDOWN-HOOD LID-RH-PTD BLK | 1 | $15.11 | |
| 4 | 5706-085 | CLIP,HOLDDOWN-HOOD LID-LH-PTD BLK | 1 | $15.11 | |
| 5 | 1623-409 | RETAINER,PUSHNUT-1/4 | 1 | $1.09 | |
| 6 | 0621-572 | DECAL,HOOD-BLUE-REAR | 1 | $3.71 | |
| 6 | 0621-584 | DECAL,HOOD-ORN-REAR | 1 | $5.92 | |
| 7 | 0621-562 | DECAL,HOOD-BLUE-FORWARD-RH | 1 | $12.35 | |
| 7 | 0621-563 | DECAL,HOOD-BLUE-FORWARD-LH | 1 | $12.35 | |
| 7 | 0621-582 | DECAL,HOOD-ORN-FORWARD-RH | 1 | $12.35 | |
| 7 | 0621-583 | DECAL,HOOD-ORN-FORWARD-LH | 1 | $12.35 | |
| 8 | 9611-751 | DECAL,EMBLEM-CHROME | 1 | $42.95 | |
| 9 | 6606-027 | BRKT,LID HINGE-BCXT | 1 | $20.63 | |
| 10 | 1623-469 | NUT,STAMPED- 0.330 | 1 | $1.23 | |
| 11 | 6606-278 | WINDSHIELD, EX HIGH | 1 | $315.95 | |
| 11 | 5606-962 | WINDSHIELD,HIGH-TINT | 1 | $224.95 | |
| 12 | 1623-677 | RIVET,PLASTIC - 6.0 MM DIA | 1 | $1.37 | |
| 13 | 1623-902 | SCREW,MH-TSTRH-M8X1.25X20-Z&BLK-W/2510 | 1 | $5.78 | |
| 14 | 1623-837 | WASHER,RUBBER-8X19X3 | 1 | $9.10 | |
| 15 | 8050-242 | WASHER,FLAT- 5/16 X .625 X .063 Z&Y | 1 | $2.06 | |
| 16 | 0124-054 | SNAP CAP W/WASHER | 1 | $1.23 | |
| 17 | 0623-121 | SCREW,MACH-PHTRH #10-32X3/4 Z&Y | 1 | $4.82 | |
| 18 | 5706-073 | SUPPORT,WINDSHIELD-PTD BLK | 1 | $15.11 | |
| 19 | 0623-845 | NUT, EXP,10-32 | 1 | $2.47 | |
| 20 | 4606-961 | BRKT,HOLDDOWN-WINDSHIELD | 1 | $17.87 | |
| 21 | 1623-129 | R/B 2623-166 | 1 | $0.35 | |
| 22 | 5606-277 | BRKT, WINDSHIELD | 1 | $30.95 | |
| 23 | 5606-940 | BEZEL,INTAKE-RH-WHT ASSY | 1 | $54.95 | |
| 23 | 5606-941 | BEZEL,INTAKE-LH-WHT ASSY | 1 | $54.95 | |
| 24 | 4606-926 | STRAP,HOLDDOWN-STORAGE BOX LID | 1 | $4.68 | |
| 25 | 3718-888 | SPAR,FRONT-XT-BLU-RH W/DECALS | 1 | $109.95 | |
| 25 | 3718-889 | SPAR,FRONT-XT-BLU-LH W/DECALS | 1 | $109.95 | |
| 25 | 3718-894 | SPAR,FRONT-XT-ORN-RH W/DECALS | 1 | $149.95 | |
| 25 | 3718-895 | SPAR,FRONT-XT-ORN-LH W/DECALS | 1 | $149.95 | |
| 26 | 3718-886 | SPAR,FRONT-XT-BLU-RH W/O DECALS | 1 | $98.95 | |
| 26 | 3718-887 | SPAR,FRONT-XT-BLU-LH W/O DECALS | 1 | $98.95 | |
| 26 | 3718-892 | SPAR,FRONT-XT-ORN-RH W/O DECALS | 1 | $140.95 | |
| 26 | 3718-893 | SPAR,FRONT-XT-ORN-LH W/O DECALS | 1 | $140.95 | |
| 27 | 0617-656 | FOAM,SPAR-RH | 1 | $17.87 | |
| 27 | 0617-657 | FOAM,SPAR-LH | 1 | $17.87 | |
| 28 | 4606-934 | FOIL,RH SPAR-BOTTOM | 1 | $1.50 | |
| 29 | 0621-574 | DECAL,FRONT SPAR-BLUE-RH | 1 | $24.77 | |
| 29 | 0621-575 | DECAL,FRONT SPAR-BLUE-LH | 1 | $24.77 | |
| 29 | 0621-588 | DECAL,FRONT SPAR-ORN-RH | 1 | $24.77 | |
| 29 | 0621-589 | DECAL,FRONT SPAR-ORN-LH | 1 | $24.77 | |
| 30 | 0623-797 | SCREW,SELF TAP-TSTH 10-12X1/2 WO/GP | 1 | $0.45 | |
| 31 | 1623-030 | NUT,SPEED-#10B U TYPE | 1 | $0.95 | |
| 32 | 5606-723 | FACIA, FRT-MOLD WHITE | 1 | $124.95 | |
| 32 | 5606-721 | FACIA, FRT-MOLD ORG | 1 | $156.95 | |
| 33 | 0623-362 | RIVET,PLASTIC-REINSTALLABLE | 1 | $0.68 | |
| 34 | 0623-966 | SCREW,SELF TAP-HWH M6 X 12 Z (TRI LOB) | 1 | $1.09 | |
| 35 | 8053-242 | WASHER,LOCK-5/16 EXT TOOTH TYP A Z&Y | 1 | $0.12 | |
| 36 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 37 | 1623-775 | SCREW,SHOULDER TSTRH M6X1.0X25 Z&Y | 1 | $1.78 | |
| 38 | 4706-961 | BUMPER,FRONT W/REFLECTORS | 1 | $259.95 | |
| 39 | 9611-386 | DECAL,REFLECTOR-AMBER RH | 1 | $22.01 | |
| 39 | 9611-387 | DECAL,REFLECTOR-AMBER LH | 1 | $22.01 | |
| 40 | 8408-025 | SCREW,CAP-HFH M10X1.25X25 CL8.8 Z&Y | 1 | $3.16 | |
| 41 | 8427-002 | NUT,HEX FLG-NYL LOCK M10X1.25 CL8 Z&Y | 1 | $0.95 |
