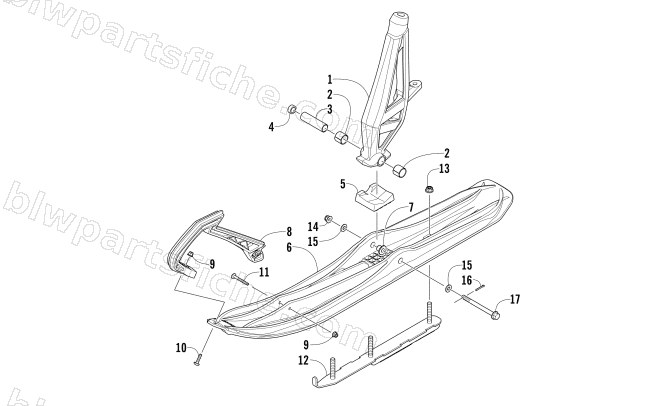

2013 Arctic Cat XF 800 SNO PRO LTD — SKI AND SPINDLE ASSEMBLY
2013 XF 800 SNO PRO LTD
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2703-988 | SPINDLE,RH - BLK-FABR | 1 | $305.95 | |
| 1 | 2703-989 | SPINDLE,LH - BLK-FABR | 1 | $305.95 | |
| 1 | 3703-048 | SPINDLE,RH-FABR WHT | 1 | $305.95 | |
| 1 | 3703-049 | SPINDLE,LH-FABR WHT | 1 | $305.95 | |
| 2 | 0603-158 | BEARING,GARLOCK 12DU12 | 1 | $8.21 | |
| 3 | 2603-813 | AXLE,SPINDLE-ALUM- 75MM (2.96") | 1 | $24.77 | |
| 4 | 2603-208 | SPACER,SKI-ADJ STANCE-PLASTIC | 1 | $1.64 | |
| 5 | 3603-237 | DAMPER,SKI-RUBBER | 1 | $19.25 | |
| 6 | 3603-234 | SKI,BLK-PLASTIC-152.4MM (6")-4 HOLE | 1 | $118.95 | |
| 7 | 2603-746 | INSERT, SKI - 10 MM | 1 | $2.47 | |
| 8 | 2603-950 | HANDLE,PLASTIC SKI-BLK | 1 | $33.95 | |
| 8 | 3603-229 | HANDLE,PLASTIC SKI-PC PRL WHT | 1 | $33.95 | |
| 9 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 10 | 8476-625 | SCREW,MACH-TSTRH M6X1.0X25 Z&Y | 1 | $1.78 | |
| 11 | 8476-650 | SCREW,MACH-TSTRH M6X1.0X50 Z&Y | 1 | $1.50 | |
| 12 | 2703-598 | SKAG,SPLIT-RH-4"-3 BOLT-.312"-PTD BLK | 1 | $75.00 | |
| 12 | 2703-599 | SKAG,SPLIT-LH-4"-3 BOLT-3.12"-PTD BLK | 1 | $75.00 | |
| 13 | 8047-486 | NUT,HEX FLG-NY LOCK 3/8-16 GR F Z&Y | 1 | $0.95 | |
| 14 | 0423-744 | NUT,HEX FLANGE-NSL M10X1.25 W/ 204 PATCH | 1 | $1.92 | |
| 15 | 1623-801 | WASHER,FLAT-M10-10.98 X 28.00 X 1.6 Z&Y | 1 | $0.95 | |
| 16 | 0123-458 | PIN,COTTER 1/8X1 | 1 | $0.40 | |
| 17 | 1623-781 | BOLT,SKI-HFH M10- 1.25 X 137 CL10.9 | 1 | $5.65 |
