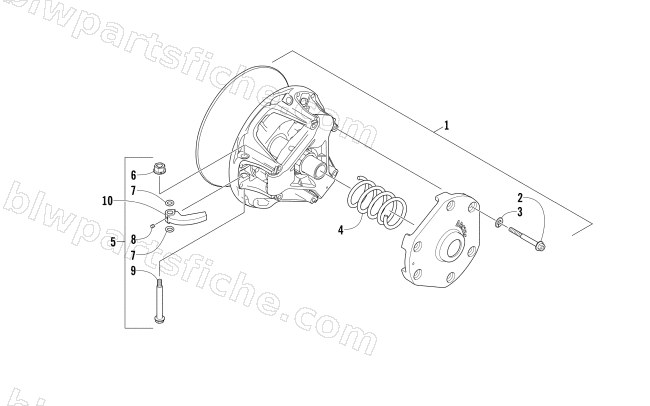

2013 Arctic Cat XF 800 HIGH COUNTRY SNO PRO LTD — DRIVE CLUTCH
2013 XF 800 HIGH COUNTRY SNO PRO LTD
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0746-435 | CLUTCH,DRIVE-UNCAL-8.25 33MM/S | 1 | $696.95 | |
| 2 | 0646-431 | SCREW,CAP-FH SHOULDER | 1 | $1.92 | |
| 3 | 0646-430 | WASHER,SPR LOCK-M8 | 1 | $0.40 | |
| 4 | 0646-229 | SPRING,CLUTCH-YELLOW/WHITE | 1 | $54.95 | |
| 5 | 4639-674 | KIT,CAM ARM REPAIR '05-'09(WIDE) | 1 | $58.95 | |
| 6 | 8048-366 | NUT,HEX FLG-TOP LOCK 1/4-20 GR F Z&Y | 1 | $0.68 | |
| 7 | 1602-692 | O-RING, 5/16 X 1/2 X 3/32 - VITON | 1 | $0.68 | |
| 8 | 1623-183 | SCREW,SET-CUP PT W/THD LOC-8-32X3/16 | 1 | $1.64 | |
| 9 | 0646-747 | PIN, CAM ARM | 1 | $17.87 | |
| 10 | 0746-671 | ARM,CAM-WIDE-P1-70 GRAM W/SET SCREW | 1 | $13.73 | |
| 10 | 0746-672 | ARM,CAM-WIDE-P1-75 GRAM W/SET SCREW | 1 | $13.73 | |
| 10 | 0746-716 | ARM,CAM-WIDE-P1-73 GRAM W/SET SCREW | 1 | $13.73 | |
| 10 | 0746-695 | ARM,CAM-WIDE-P1 67 GRAM W/SET SCREW | 1 | $13.73 |
