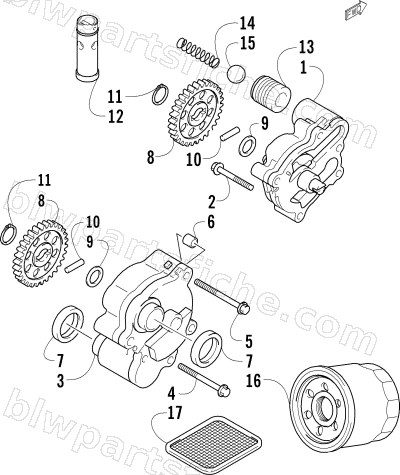

2013 Arctic Cat XF 1100 TURBO SNO PRO HIGH COUNTRY — OIL PUMP ASSEMBLY
2013 XF 1100 TURBO SNO PRO HIGH COUNTRY
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3007-161 | PUMP ASSY,ENG OIL FEED | 1 | $312.95 | |
| 2 | 3007-496 | BOLT,CYL HEAD | 1 | $3.16 | |
| 3 | 3007-162 | PUMP ASSY,ENG OIL SCV | 1 | $310.95 | |
| 4 | 3007-505 | BOLT,OIL PAN | 1 | $3.16 | |
| 5 | 3007-370 | BOLT,CYLINDER HEAD COVER NO. 2 | 1 | $3.95 | |
| 6 | 3005-206 | PIN (H:10),DOWEL | 1 | $3.30 | |
| 7 | 3007-163 | SEAL,OIL GALLERY SCV | 1 | $34.95 | |
| 8 | 3007-164 | GEAR,OIL PUMP DRIVEN | 1 | $110.95 | |
| 9 | 3007-165 | WASHER,OIL PUMP DRIVEN GEAR 12X20X0.5 | 1 | $4.26 | |
| 10 | 3007-166 | PIN,OIL PUMP DRIVEN | 1 | $3.30 | |
| 11 | 3423-876 | CIRCLIP,REV SHIFT CAM FASTENER | 1 | $3.44 | |
| 12 | 3007-167 | VALVE ASSY,OIL RELIEF | 1 | $126.95 | |
| 13 | 3007-168 | SEAT,OIL FEED CHECK VALVE | 1 | $73.95 | |
| 14 | 3007-169 | SPRING,OIL FEED CHECK VALVE | 1 | $5.37 | |
| 15 | 3007-170 | BALL,OIL FEED CHECK VALVE | 1 | $6.75 | |
| 16 | 2670-440 | FILTER,OIL-ENGINE (2670-436) | 1 | $29.95 | |
| 17 | 3007-172 | STRAINER,ENGINE OIL | 1 | $34.95 |
