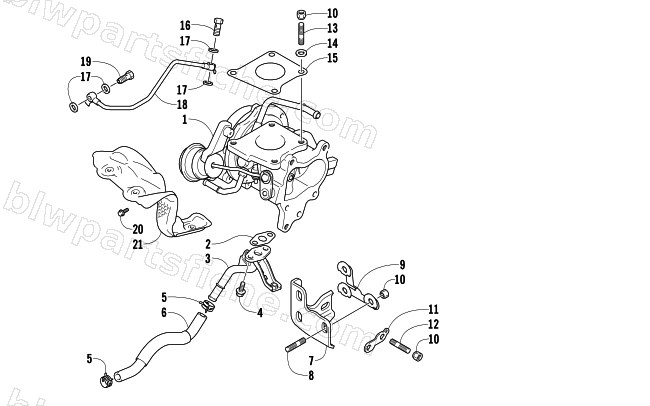

2013 Arctic Cat XF 1100 TURBO SNO PRO HIGH COUNTRY LTD — TURBOCHARGER ASSEMBLY
2013 XF 1100 TURBO SNO PRO HIGH COUNTRY LTD
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3007-806 | CHARGER ASSY,TURBO | 1 | $3,137.95 | |
| 2 | 3007-814 | GASKET,OIL DRAIN JOINT | 1 | $17.87 | |
| 3 | 3007-813 | JOINT,OIL DRAIN | 1 | $100.95 | |
| 4 | 3007-371 | BOLT (6X12) | 1 | $3.16 | |
| 5 | 3006-855 | CLIP | 1 | $5.51 | |
| 6 | 3007-815 | HOSE,TURBO OIL DRAIN | 1 | $145.95 | |
| 7 | 3007-797 | BRACKET,TURBO CHARGER | 1 | $93.95 | |
| 8 | 3007-415 | STUD BOLT | 1 | $4.95 | |
| 9 | 3007-800 | WASHER ASSY,TC BRACKET | 1 | $27.95 | |
| 10 | 3006-111 | NUT,8MM '02 660 L/C | 1 | $2.75 | |
| 11 | 3007-799 | WASHER,TC BRACKET | 1 | $13.73 | |
| 12 | 3007-798 | BOLT,TC BRACKET STUD | 1 | $20.63 | |
| 13 | 3007-807 | BOLT,EXH MANIF & TC STUD | 1 | $17.87 | |
| 14 | 3007-793 | WASHER,EXH MANIF | 1 | $2.47 | |
| 15 | 3007-801 | GASKET,EXH MANIF & TC | 1 | $49.95 | |
| 16 | 3007-811 | BOLT,UNION OIL TC SIDE | 1 | $27.95 | |
| 17 | 3006-112 | GASKET 02 660 L/C | 1 | $9.59 | |
| 18 | 0637-328 | PIPE,TURBO OIL INLET-KIT | 1 | $100.95 | |
| 20 | 3007-804 | BOLT,EXH MANIF & TC COVER | 1 | $2.75 | |
| 21 | 3007-803 | COVER,EXH MANIF & TC LOWER | 1 | $159.95 |
