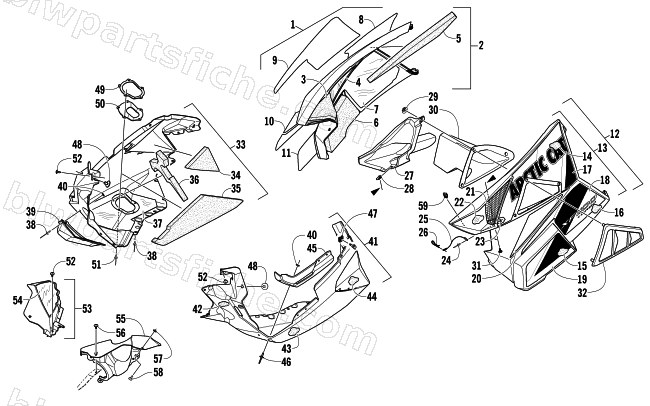

2013 Arctic Cat XF 1100 TURBO SNO PRO HIGH COUNTRY LTD — SKID PLATE AND SIDE PANEL ASSEMBLY
2013 XF 1100 TURBO SNO PRO HIGH COUNTRY LTD
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3718-674 | PANEL,SIDE-RH W/DECALS(XF TURBO LTD BLK) | 1 | $596.95 | |
| 1 | 3718-732 | PANEL,SIDE-RH W/DECAL(XF TRB LTD WHT/BLK | 1 | $487.95 | |
| 2 | 3718-660 | PANEL,SIDE-RH W/FOAM-BLK/CLR (4 STRK) | 1 | $284.95 | |
| 2 | 3718-766 | PANEL,SIDE-RH W/FOAM(4STK LTD WHT W/CLR) | 1 | $282.95 | |
| 3 | 0617-626 | FOAM,UPPER SIDE PANEL-FRT-RH | 1 | $4.26 | |
| 4 | 6606-414 | FOIL,PROTECTIVE-MIDDLE SIDE PANEL-RH | 1 | $1.92 | |
| 5 | 0617-628 | FOAM,UPPER SIDE PANEL-REAR-RH | 1 | $37.95 | |
| 6 | 0617-632 | FOAM,LWR SIDE PANEL-FRT-RH | 1 | $22.01 | |
| 7 | 6606-416 | FOIL,PROTECTIVE-LWR SIDE PANEL-REAR-RH | 1 | $3.57 | |
| 8 | 0621-292 | DECAL,SIDE PANEL-UPPER-BLK-RH (LTD) | 1 | $77.95 | |
| 8 | 0621-216 | DECAL,SIDE PANEL-UPR-WHT-RH (LTD) | 1 | $74.95 | |
| 9 | 0621-310 | DECAL,SIDE PANEL-LWR-BLK-RH (XFTRBO LTD) | 1 | $102.95 | |
| 9 | 0621-234 | DECAL,SIDE PANEL-LWR-WHT-RH (XF TBO LTD) | 1 | $66.95 | |
| 10 | 0621-296 | DECAL,SIDE PANEL-MID-BLK-RH (LTD) | 1 | $97.95 | |
| 10 | 0621-220 | DECAL,SIDE PANEL-MID-WHT-RH (LTD) | 1 | $74.95 | |
| 11 | 0621-298 | DECAL,SIDE PANEL-FWD-BLK-RH (LTD) | 1 | $102.95 | |
| 11 | 0621-222 | DECAL,SIDE PANEL-FWD-WHT-RH (LTD) | 1 | $46.95 | |
| 12 | 3718-675 | PANEL,SIDE-LH W/DECALS(XF TURBO LTD BLK) | 1 | $596.95 | |
| 12 | 3718-733 | PANEL,SIDE-LH W/DECAL(XF TRB LTD WHT/BLK | 1 | $487.95 | |
| 13 | 3718-661 | PANEL,SIDE-LH W/FOAM-BLK/CLR (TURBO) | 1 | $284.95 | |
| 13 | 3718-767 | PANEL,SIDE-LH W/FOAM(TURBO WHT W/CLR) | 1 | $275.95 | |
| 14 | 0617-669 | FOAM,UPPER SIDE PANEL-REAR LH-4 STRK | 1 | $12.35 | |
| 15 | 0617-681 | FOAM,LWR SIDE PANEL-FRT-LH | 1 | $5.65 | |
| 16 | 0617-635 | FOAM,LWR SIDE PANEL-REAR-LH | 1 | $12.35 | |
| 17 | 0621-295 | DECAL,SIDE PANEL-UPPER-BLK-LH (TRBO LTD) | 1 | $93.95 | |
| 17 | 0621-219 | DECAL,SIDE PANEL-UPR-WHT-LH (LTD TURBO) | 1 | $66.95 | |
| 18 | 0621-311 | DECAL,SIDE PANEL-LWR-BLK-LH (XFTRBO LTD) | 1 | $102.95 | |
| 18 | 0621-235 | DECAL,SIDE PANEL-LWR-WHT-LH (XF TBO LTD) | 1 | $66.95 | |
| 19 | 0621-299 | DECAL,SIDE PANEL-FWD-BLK-LH (LTD) | 1 | $102.95 | |
| 19 | 0621-223 | DECAL,SIDE PANEL-FWD-WHT-LH (LTD) | 1 | $49.95 | |
| 20 | 0621-297 | DECAL,SIDE PANEL-MID-BLK-LH (LTD) | 1 | $97.95 | |
| 20 | 0621-221 | DECAL,SIDE PANEL-MID-WHT-LH (LTD) | 1 | $74.95 | |
| 21 | 5706-531 | SCREEN,SIDE PANEL-UPR LH-PTD BLK | 1 | $20.63 | |
| 22 | 0619-206 | TAPE,ALUM FOIL - 6" X 30 FT | 1 | $7.77 | |
| 23 | 8050-127 | WASHER,FLAT- #8 X .375 X .049 Z&Y | 1 | $1.37 | |
| 24 | 8060-486 | RIVET, BLIND-DH SS54 ZINC | 1 | $0.40 | |
| 25 | 0607-447 | CABLE,5"-HAIRPIN | 1 | $5.37 | |
| 26 | 0605-283 | HAIRPIN,COTTER | 1 | $1.23 | |
| 27 | 2602-457 | DUCT,BELT COOLING-4 STRK | 1 | $46.95 | |
| 28 | 1623-030 | NUT,SPEED-#10B U TYPE | 1 | $0.95 | |
| 29 | 1623-469 | NUT,STAMPED- 0.330 | 1 | $1.23 | |
| 30 | 0708-596 | DUCT,HEAT-TURBO-ROUTED | 1 | $62.95 | |
| 31 | 0623-797 | SCREW,SELF TAP-TSTH 10-12X1/2 WO/GP | 1 | $0.45 | |
| 32 | 0608-648 | COVER,DUCT-HEAT-TURBO | 1 | $16.49 | |
| 33 | 3718-744 | PLATE,SKID-BLK/CLR-RH W/FOAM | 1 | $374.95 | |
| 33 | 3718-746 | PLATE,SKID-WHT W/CLR-RH W/FOAM | 1 | $374.95 | |
| 34 | 0617-640 | FOAM,SKID PLATE-REAR-RH | 1 | $3.57 | |
| 35 | 0617-638 | FOAM,SKID PLATE-MIDDLE-RH | 1 | $43.95 | |
| 36 | 0617-636 | FOAM,SKID PLATE-FRT-RH | 1 | $37.95 | |
| 37 | 2612-850 | R/B 3612-325 | 1 | $19.95 | |
| 38 | 8061-708 | RIVET, BLIND-LF SS66 BLACK | 1 | $0.95 | |
| 39 | 2612-754 | SHIELD,RESONATOR-SKID PLATE | 1 | $29.95 | |
| 40 | 0123-802 | WASHER,FLAT .194X.50X.048-Z&Y | 1 | $0.12 | |
| 41 | 3718-745 | PLATE,SKID-BLK/CLR-LH W/FOAM | 1 | $244.95 | |
| 41 | 3718-769 | PLATE,SKID-REAR LH W/FOAM-WHT W/CLR | 1 | $267.95 | |
| 42 | 0617-637 | FOAM,SKID PLATE-FRT-LH | 1 | $16.49 | |
| 43 | 0617-639 | FOAM,SKID PLATE-MIDDLE-LH | 1 | $16.49 | |
| 44 | 0617-641 | FOAM,SKID PLATE-REAR-LH | 1 | $3.99 | |
| 45 | 6606-613 | RETAINER,TAB-SIDE PANEL | 1 | $12.35 | |
| 46 | 8061-688 | RIVET,BLIND-LF SS66 ZINC | 1 | $0.95 | |
| 47 | 1623-748 | CLIP, RECEPTACLE-1/4 TURN STUD | 1 | $5.65 | |
| 48 | 5606-639 | R/B 6606-592 | 1 | $18.95 | |
| 49 | 2612-796 | PLATE,EXHAUST OUTLET | 1 | $25.95 | |
| 50 | 2612-799 | SEAL,EXHAUST OUTLET-4 STRK | 1 | $17.87 | |
| 51 | 8061-710 | RIVET,BLIND-LF SS68 BLACK | 1 | $1.09 | |
| 52 | 1623-129 | R/B 2623-166 | 1 | $0.35 | |
| 53 | 3718-302 | PANEL,FILLER W/FOIL-RH | 1 | $19.25 | |
| 54 | 6606-404 | FOIL,PROTECTIVE-FILLER PANEL-RH | 1 | $2.61 | |
| 55 | 6606-351 | PANEL,FILLER-LH-TURBO-BLK | 1 | $67.95 | |
| 56 | 0623-784 | R/B 2623-163 | 1 | $0.35 | |
| 57 | 2623-001 | RETAINER,PUSHNUT-3/16" STUD | 1 | $0.40 | |
| 58 | 1623-999 | SCREW,1" RND KNOB-M5X0.8X20mm LG | 1 | $4.95 | |
| 59 | 1623-637 | CLIP,U-NUT (M5) | 1 | $2.47 |
