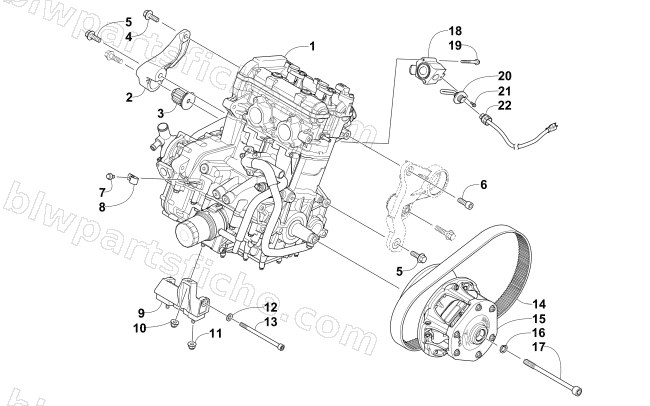

2013 Arctic Cat XF 1100 SNO PRO LTD — ENGINE AND RELATED PARTS
2013 XF 1100 SNO PRO LTD
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0762-583 | LONG BLOCK,ENGINE-1100NA | 1 | $5,290.95 | |
| 2 | 0708-574 | MOUNT,ENGINE-4 STROKE-RH REAR FABR | 1 | $106.95 | |
| 3 | 0608-654 | MOUNT,ENGINE 60 DURO | 1 | $27.95 | |
| 4 | 8413-036 | SCREW,CAP-HFH M10X1.25X35 CL10.9 W/2353 | 1 | $7.72 | |
| 5 | 8413-241 | SCREW,CAP-HFH M12X1.25X40 CL10.9W/2353 | 1 | $8.54 | |
| 6 | 1623-985 | SCREW,CAP-HSH-M10X1.25X35-CL12.9-W/2510 | 1 | $2.75 | |
| 7 | 8408-816 | SCREW,CAP-HFH M8X1.25X16 CL8.8 Z&Y | 1 | $0.68 | |
| 8 | 1623-080 | CLAMP, FLEX SHAFT (550/600) | 1 | $1.50 | |
| 9 | 0608-619 | MOUNT,ENGINE-FRT-ASSY | 1 | $38.95 | |
| 10 | 8427-002 | NUT,HEX FLG-NYL LOCK M10X1.25 CL8 Z&Y | 1 | $0.95 | |
| 11 | 8427-802 | NUT,HEX FLG-NYL LOCK M8X1.25 CL8 Z&Y | 1 | $0.54 | |
| 12 | 8450-157 | WASHER,FLAT M10X20X2.30 Z&Y | 1 | $3.16 | |
| 13 | 1623-925 | SCREW,CAP-HSH M10X1.25- Z&Y MPT | 1 | $27.95 | |
| 14 | 0627-081 | BELT,DRIVE DCVS S3C-S 36.8W X 1178OC | 1 | $149.95 | |
| 15 | 0746-435 | CLUTCH,DRIVE-UNCAL-8.25 33MM/S | 1 | $696.95 | |
| 16 | 1623-649 | WASHER,CLUTCH BOLT | 1 | $5.65 | |
| 17 | 1623-620 | BOLT,DRIVE CLUTCH - M12 X 1.25 X 176 | 1 | $53.95 | |
| 18 | 0609-928 | ADAPTER,HEATER ELEMENT | 1 | $211.95 | |
| 19 | 8408-650 | SCREW,CAP-HFH M6X1.0X50 CL8.8 Z&Y | 1 | $1.78 | |
| 20 | 0609-926 | ELEMENT,HEATING-240V-OS | 1 | $175.95 | |
| 20 | 0609-927 | ELEMENT,HEATING-110V-US | 1 | $175.95 | |
| 21 | 8408-617 | SCREW,CAP-HFH M6X1.0X16 CL8.8 Z&Y W/2353 | 1 | $1.50 | |
| 22 | 0709-081 | CORD,PLUG-IN W/DECAL | 1 | $227.95 | |
| 22 | 0709-082 | CORD,ENGINE HEATER W/DECAL-US | 1 | $45.95 |
