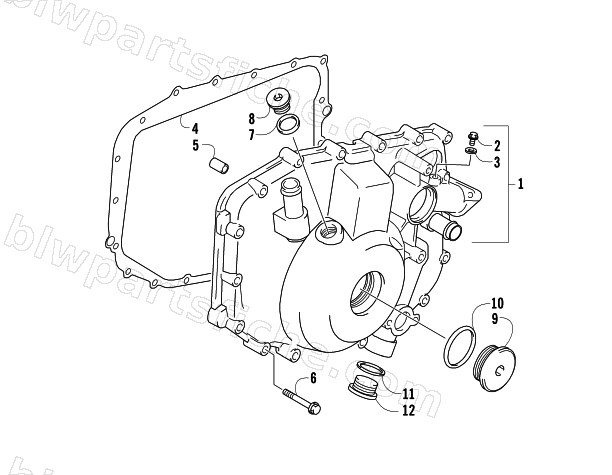

MAGNETO COVER
2013 TZ1
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3007-095 | COVER,MAGNETO | 1 | $492.95 | |
| 2 | 3006-598 | BOLT,AIR RELEASE | 1 | $5.92 | |
| 3 | 3003-290 | GASKET,CHECK VALVE,6MM | 1 | $3.85 | |
| 4 | 3007-096 | GASKET,MAGNETO COVER | 1 | $45.95 | |
| 5 | 3007-097 | PIN,MAGNETO COVER KNOCK | 1 | $3.30 | |
| 6 | 3007-503 | BOLT,MAGNETO COVER | 1 | $3.16 | |
| 7 | 3402-013 | GASKET, M16X22X2 | 1 | $3.16 | |
| 8 | 3403-236 | PLUG 16MM | 1 | $15.11 | |
| 9 | 3402-898 | PLUG, CRANK HOLE | 1 | $27.95 | |
| 10 | 3423-061 | O RING D:3.1 ID:32.7 | 1 | $4.26 | |
| 11 | 3403-106 | GASKET,IDLER SHAFT | 1 | $13.73 | |
| 12 | 3007-085 | PLUG,OIL GALLERY (M26) | 1 | $30.95 |
