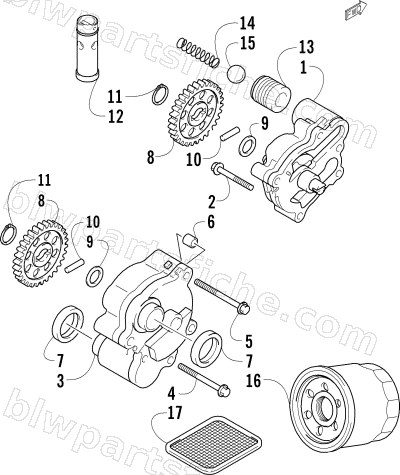

OIL PUMP ASSEMBLY
2013 TZ1 TURBO LXR
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3007-161 | PUMP ASSY,ENG OIL FEED | 1 | $312.95 | |
| 2 | 3007-496 | BOLT,CYL HEAD | 1 | $3.16 | |
| 3 | 3007-162 | PUMP ASSY,ENG OIL SCV | 1 | $310.95 | |
| 4 | 3007-505 | BOLT,OIL PAN | 1 | $3.16 | |
| 5 | 3007-370 | BOLT,CYLINDER HEAD COVER NO. 2 | 1 | $3.95 | |
| 6 | 3005-206 | PIN (H:10),DOWEL | 1 | $3.30 | |
| 7 | 3007-163 | SEAL,OIL GALLERY SCV | 1 | $34.95 | |
| 8 | 3007-164 | GEAR,OIL PUMP DRIVEN | 1 | $110.95 | |
| 9 | 3007-165 | WASHER,OIL PUMP DRIVEN GEAR 12X20X0.5 | 1 | $4.26 | |
| 10 | 3007-166 | PIN,OIL PUMP DRIVEN | 1 | $3.30 | |
| 11 | 3423-876 | CIRCLIP,REV SHIFT CAM FASTENER | 1 | $3.44 | |
| 12 | 3007-167 | VALVE ASSY,OIL RELIEF | 1 | $126.95 | |
| 13 | 3007-168 | SEAT,OIL FEED CHECK VALVE | 1 | $73.95 | |
| 14 | 3007-169 | SPRING,OIL FEED CHECK VALVE | 1 | $5.37 | |
| 15 | 3007-170 | BALL,OIL FEED CHECK VALVE | 1 | $6.75 | |
| 16 | 2670-440 | FILTER,OIL-ENGINE (2670-436) | 1 | $29.95 | |
| 17 | 3007-172 | STRAINER,ENGINE OIL | 1 | $34.95 |
