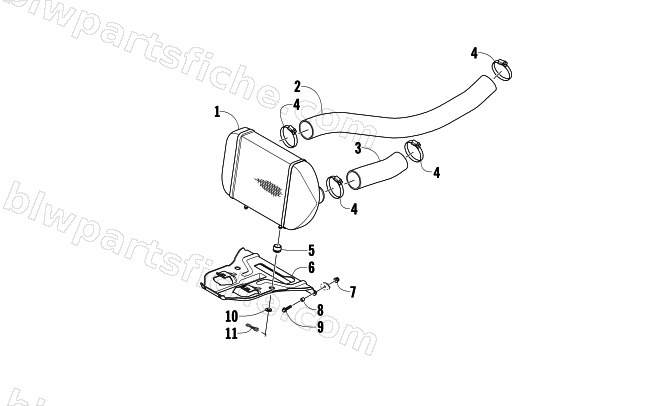

2013 Arctic Cat TZ1 TURBO LXR — INTERCOOLER ASSEMBLY
2013 TZ1 TURBO LXR
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1670-954 | INTERCOOLER-TURBO | 1 | $382.95 | |
| 2 | 0610-736 | HOSE,INTERCOOLER OUTLET | 1 | $53.95 | |
| 3 | 0610-737 | HOSE,INTERCOOLER INLET | 1 | $43.95 | |
| 4 | 0423-019 | CLAMP,HOSE-WORM (NORMA 50-70) | 1 | $2.47 | |
| 5 | 0423-533 | GROMMET, BLACK-SILICON-DURO 70 | 1 | $3.16 | |
| 6 | 2670-072 | BRKT,INTERCOOLER | 1 | $128.95 | |
| 7 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 8 | 5606-560 | SPACER,5MM-(5/16" OD) | 1 | $3.71 | |
| 9 | 8408-635 | SCREW,CAP-HFH M6X1.0X35 CL8.8 Z&Y | 1 | $0.68 | |
| 10 | 8050-272 | WASHER,FLAT- 3/8 X .734 X .063 Z&Y | 1 | $0.26 | |
| 11 | 1623-546 | PIN,RETAINING-BOWTIE-1/2" | 1 | $1.37 |
