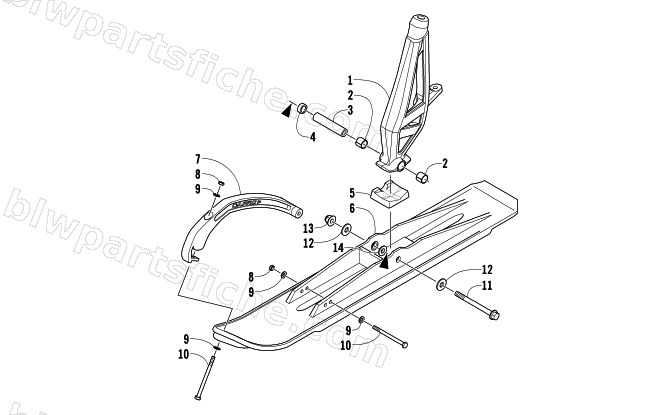

2013 Arctic Cat SNO PRO 600 — SKI AND SPINDLE ASSEMBLY
2013 SNO PRO 600
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3703-066 | SPINDLE,RH-BLK FABR | 1 | $307.95 | |
| 1 | 3703-067 | SPINDLE,LH-BLK FABR | 1 | $307.95 | |
| 2 | 0603-158 | BEARING,GARLOCK 12DU12 | 1 | $8.21 | |
| 3 | 2603-813 | AXLE,SPINDLE-ALUM- 75MM (2.96") | 1 | $24.77 | |
| 4 | 2603-208 | SPACER,SKI-ADJ STANCE-PLASTIC | 1 | $1.64 | |
| 5 | 3603-245 | DAMPER,SKI-RUBBER | 1 | $19.25 | |
| 6 | 3703-093 | SKI,PLASTIC-W/LOOP-XT ASSY | 1 | $442.95 | |
| 7 | 2603-708 | SKI,HANDLE (PRIDE) | 1 | $121.95 | |
| 8 | 0623-928 | NUT, HEX-NSL 5/16-18 Z&C | 1 | $0.95 | |
| 9 | 0623-927 | WASHER,FLAT-5/16 ID X .688 X .065 Z&C | 1 | $0.26 | |
| 10 | 1623-684 | SCREW,CAP-HH 5/16-18X4 1/2 GR8 Z&C | 1 | $13.73 | |
| 11 | 1623-996 | SCREW,CAP-HFH-M10-1.25 X 130 Z&Y | 1 | $21.95 | |
| 12 | 0423-073 | WASHER,FLAT-1.38 OD X .413 ID X.134 TH | 1 | $1.50 | |
| 13 | 8427-002 | NUT,HEX FLG-NYL LOCK M10X1.25 CL8 Z&Y | 1 | $0.95 | |
| 14 | 3603-256 | INSERT,SKI-M10 | 1 | $12.35 |
