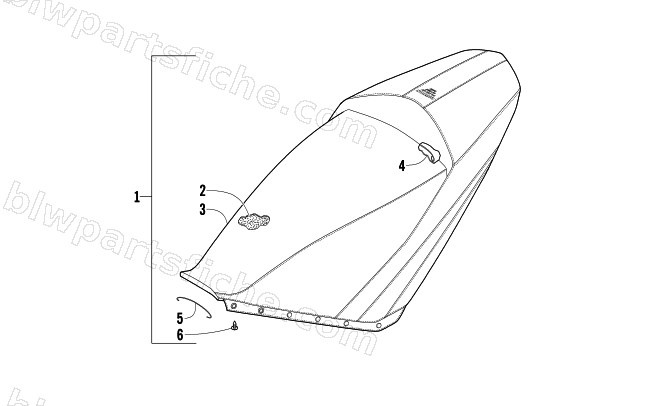

2013 Arctic Cat SNO PRO 600 — SEAT ASSEMBLY
2013 SNO PRO 600
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 5706-502 | SEAT,RACE-SNO CROSS-ASSY | 1 | $713.95 | |
| 2 | 0717-212 | FOAM,SEAT-(75-80 ILD).48@5.0 | 1 | $156.95 | |
| 3 | 5706-503 | COVER,SEAT-SNO CROSS | 1 | $382.95 | |
| 5 | 5606-379 | WIRE,SEAT - 229 MM - FORMED | 1 | $0.40 | |
| 6 | 1623-129 | R/B 2623-166 | 1 | $0.35 |
