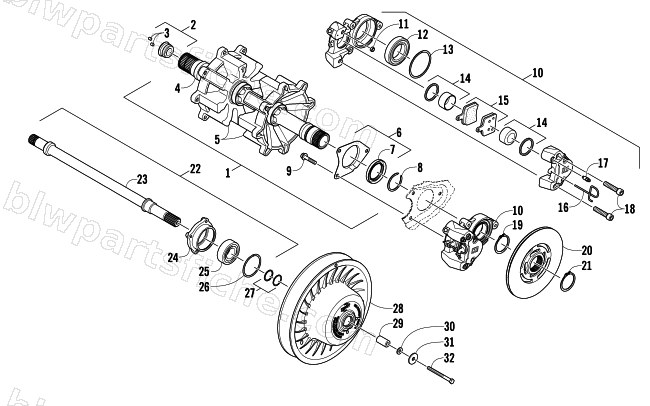

2013 Arctic Cat SNO PRO 600 — DRIVE TRAIN SHAFTS AND BRAKE ASSEMBLIES
2013 SNO PRO 600
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0728-209 | TRACK DRIVE,8T-2.86P RACE-ASSY | 1 | $506.95 | |
| 2 | 1702-243 | PLUG,DRIVE SHAFT-W/MAGNETS | 1 | $50.95 | |
| 4 | 2602-626 | SHAFT,DRIVE-HEX-45MM RACE | 1 | $322.95 | |
| 5 | 2602-472 | R/B 2602-755 | 1 | $81.95 | |
| 6 | 1702-206 | R/B 1702-502 | 1 | $24.95 | |
| 8 | 2602-233 | SNAP RING(CLR-175) | 1 | $2.19 | |
| 9 | 8408-826 | SCREW,CAP-HFH M8X1.25X25 CL8.8 W/2353 | 1 | $0.40 | |
| 10 | 2602-752 | CALIPER,BRAKE-FIXED/DUAL PISTON | 1 | $352.95 | |
| 11 | 2602-411 | SEAL,CROSSOVER | 1 | $3.44 | |
| 12 | 2602-198 | BEARING (6009-2RSFP-C3) | 1 | $24.77 | |
| 13 | 2602-280 | RING,SNAP(MKA-75) | 1 | $3.57 | |
| 14 | 2602-643 | KIT,PISTONS/SEALS | 1 | $92.95 | |
| 15 | 2602-590 | R/B 3602-017 | 1 | $132.95 | |
| 16 | 2602-409 | PIN,RETAINING | 1 | $5.65 | |
| 17 | 2602-408 | FITTING,BLEEDER | 1 | $5.65 | |
| 18 | 2602-644 | BOLT,BRAKE CALIPER-1/2" | 1 | $30.95 | |
| 19 | 2602-630 | SNAP RING-(MSH-45) | 1 | $2.61 | |
| 20 | 2602-720 | DISK,BRAKE-FORGED-34T SPLINED-MACH | 1 | $240.95 | |
| 21 | 2602-629 | SNAP RING-(MSH-43) | 1 | $2.61 | |
| 22 | 1702-362 | SHAFT,DRIVEN-W/BEARING-ASSY | 1 | $283.95 | |
| 24 | 2602-422 | HUB,BEARING HOUSING-MACH | 1 | $34.95 | |
| 25 | 2602-247 | BEARING,30 X 62 X 20 - 2206 -2RS | 1 | $20.63 | |
| 26 | 2602-236 | SNAP RING(MKA-62) | 1 | $3.16 | |
| 27 | 0623-118 | WASHER,FLAT-1.00 X1.43 X.030 | 1 | $0.95 | |
| 27 | 0623-119 | WASHER, FLAT- 1.00 X 1.43 X .075 | 1 | $7.03 | |
| 28 | 0726-329 | CLUTCH,DRIVEN-BLK/ORN-70-44-32/68-42-32 | 1 | $749.95 | |
| 29 | 0648-819 | SHAFT,STUB-DRIVEN | 1 | $34.95 | |
| 30 | 0123-053 | WASHER, FLAT 5/16 X 3/4 | 1 | $1.64 | |
| 32 | 8408-880 | SCREW,CAP-HFH M8X1.25X80 CL8.8 Z&Y | 1 | $1.09 |
