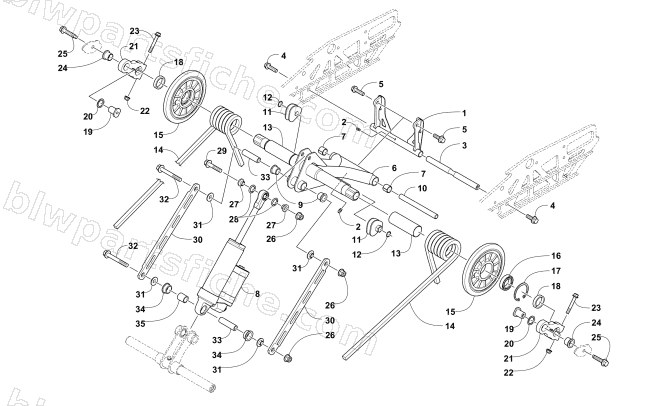

2013 Arctic Cat SNO PRO 600 CROSS COUNTRY — REAR SUSPENSION REAR ARM ASSEMBLY
2013 SNO PRO 600 CROSS COUNTRY
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2704-320 | ARM,REAR-BLK FABR | 1 | $69.95 | |
| 2 | 1623-010 | FIT,GREASE-1/4-28 UNF-SELF THREAD | 1 | $1.92 | |
| 3 | 3604-673 | AXLE,XBRC-HC-16.51X222.25 (M8X1.25) | 1 | $88.95 | |
| 4 | 8408-826 | SCREW,CAP-HFH M8X1.25X25 CL8.8 W/2353 | 1 | $0.40 | |
| 5 | 8408-041 | SCREW,CAP-HFH M10X1.25X40 CL8.8 W/2353 | 1 | $0.95 | |
| 6 | 2704-316 | ARM,IDLER-BLK-FABR | 1 | $264.95 | |
| 7 | 2603-481 | BEARING,GARLOCK (12DU16) | 1 | $2.75 | |
| 8 | 2704-309 | SHOCK,REAR ARM-CROSS COUNTRY | 1 | $960.95 | |
| 9 | 0104-386 | BUSHING,REAR ARM | 1 | $4.26 | |
| 10 | 3604-638 | AXLE,ALUM-19.05 X 173.15-MACH | 1 | $56.95 | |
| 11 | 1604-204 | BLOCK,SPRING-ADJUSTER-RH | 1 | $19.25 | |
| 11 | 1604-205 | BLOCK,SPRING-ADJUSTER-LH | 1 | $19.25 | |
| 12 | 0623-138 | RING,RETAINING-ADJ BLOCK 9/16 | 1 | $0.68 | |
| 13 | 3604-819 | SLEEVE,SPRING-98 MM | 1 | $15.11 | |
| 14 | 2704-382 | SPRING,SUSP-18.9LBS/89DEG-PTD BLK RH | 1 | $112.95 | |
| 14 | 2704-383 | SPRING,SUSP-18.9LBS/89DEG-PTD BLK LH | 1 | $112.95 | |
| 15 | 3604-616 | WHEEL,IDL-7.125(NO INSR)W/HOLE | 1 | $53.95 | |
| 16 | 3604-257 | BEARING,BALL-30MM | 1 | $34.95 | |
| 17 | 3604-256 | RING,RETAINING-INTERNAL | 1 | $4.95 | |
| 18 | 3604-289 | SPACER,OFFSET ARM-HEX SHAFT | 1 | $2.06 | |
| 19 | 3604-979 | AXLE,OFFSET ARM-M10 | 1 | $3.57 | |
| 20 | 1604-187 | WASHER, OFFSET ARM | 1 | $2.06 | |
| 21 | 2704-432 | OFFSET ARM,IDLER-HEX/FLANGE-ASSY | 1 | $64.95 | |
| 22 | 8427-802 | NUT,HEX FLG-NYL LOCK M8X1.25 CL8 Z&Y | 1 | $0.54 | |
| 23 | 8408-860 | SCREW,CAP-HFH M8X1.25X60 CL8.8 Z&Y | 1 | $1.37 | |
| 24 | 3604-713 | BUSHING,GARLOCK-12FDU12 | 1 | $3.85 | |
| 25 | 2623-002 | SCREW,CAP-HFH-M10X1.25X30-MPT-W/2353 | 1 | $3.71 | |
| 26 | 8427-002 | NUT,HEX FLG-NYL LOCK M10X1.25 CL8 Z&Y | 1 | $0.95 | |
| 27 | 3604-709 | SPACER,SPHERICAL BEARING | 1 | $4.40 | |
| 28 | 0670-183 | O-RING, 5/8 X 13/16 OD | 1 | $0.26 | |
| 29 | 8408-045 | SCREW,CAP-HFH M10X1.25X45 CL8.8 Z&Y | 1 | $4.68 | |
| 30 | 2704-230 | LINK,REAR SHOCK-FAB | 1 | $60.95 | |
| 31 | 3604-266 | INSERT,RAIL-M10 X 25 | 1 | $3.30 | |
| 32 | 8408-090 | SCREW,CAP-HFH M10X1.25X90 CL8.8 Z&Y | 1 | $3.85 | |
| 33 | 3604-694 | AXLE,REAR SHOCK LINK | 1 | $20.63 | |
| 34 | 3604-804 | BUSHING,SHOCK-.085" FLANGE | 1 | $2.06 | |
| 35 | 3604-802 | SLEEVE, 16 ID X 20.6 OD X 24.13 | 1 | $3.44 |
