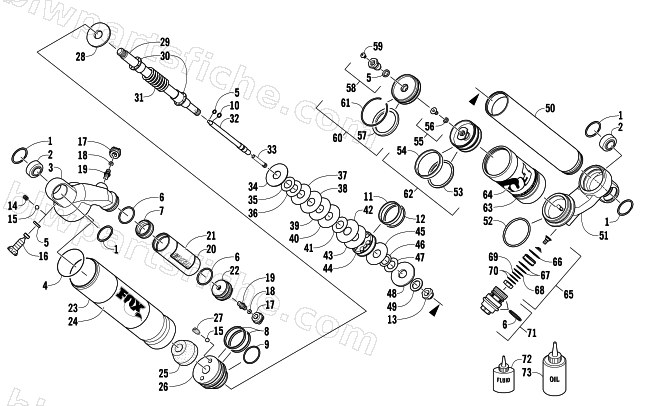

2013 Arctic Cat SNO PRO 600 CROSS COUNTRY — FRONT SUSPENSION SHOCK ABSORBER
2013 SNO PRO 600 CROSS COUNTRY
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 3703-064 | SHOCK,SKI-EVOL X-RH CC | 1 | $1,231.95 | |
| 0 | 3703-065 | SHOCK,SKI-EVOL X-LH CC | 1 | $1,231.95 | |
| 1 | 3604-147 | RETAINING RING,INTERNAL SPIRAL | 1 | $16.49 | |
| 2 | 1604-664 | BEARING,SPHERICAL | 1 | $46.95 | |
| 3 | 2603-027 | CAP,BODY-FLOAT EVOL-LH GLAND | 1 | $216.95 | |
| 3 | 2603-026 | CAP,BODY-FLOAT EVOL-RH GLAND | 1 | $217.95 | |
| 4 | 2603-929 | KIT,REBUILD-SEAL/BEARING - SKI SHOCK | 1 | $189.95 | |
| 5 | 1604-318 | O-RING-END CAP FITTING(FOX ONLY) | 1 | $11.95 | |
| 6 | 2603-502 | O-RING,.070 CS X .989 ID | 1 | $6.95 | |
| 7 | 3604-653 | IFP, EVOL CHAMBER-ASSY | 1 | $47.95 | |
| 8 | 2603-863 | BEARING,AIR SLEEVE-TURCITE -FLOAT | 1 | $20.95 | |
| 9 | 1604-420 | O-RING | 1 | $4.95 | |
| 10 | 3603-011 | O-RING,.070 CS X .101 ID | 1 | $4.95 | |
| 11 | 2603-994 | BEARING,EXTERNAL GLIDE RING-1.459" BORE | 1 | $26.95 | |
| 12 | 3603-010 | O-RING, 1.5mm CS X 25mm ID | 1 | $1.95 | |
| 13 | 0603-301 | NUT,CAP-FOX SHOCK | 1 | $6.95 | |
| 14 | 2603-529 | SPRING,REBOUND DETENT | 1 | $8.95 | |
| 15 | 1604-315 | BALL, BLEED | 1 | $4.95 | |
| 16 | 3603-004 | KNOB,RD ADJUST-3/8-32-1.45"TLG | 1 | $33.95 | |
| 17 | 2603-980 | CAP,VALVE-EVOL ADAPTER-GREEN (FOX) | 1 | $5.65 | |
| 18 | 2603-965 | SEAL,CAP-EVOL AIR VALVE-.296"ODX.125"ID | 1 | $1.64 | |
| 19 | 2603-511 | VALVE,AIR-LOW TEMP (FOX) | 1 | $32.95 | |
| 20 | 3603-002 | RESERVOIR,EVOL CHAMBER-4.50" | 1 | $54.95 | |
| 21 | 2603-958 | DECAL,GEN 2 FLOAT X EVOL CHAMBER | 1 | $19.25 | |
| 22 | 2603-966 | END CAP,EVOL CHAMBER-1.07"BOREX.727"TLG | 1 | $25.95 | |
| 23 | 2603-025 | SLEEVE,DUAL WIPER-1.834IDX2.08ODX8.415" | 1 | $118.95 | |
| 24 | 3603-006 | DECAL,GEN 2 FLOAT X AIR SLEEVE-5.4X5.31 | 1 | $29.95 | |
| 25 | 3603-005 | BUMPER,BLACK-.498 SHAFT X .883" TLG | 1 | $18.95 | |
| 26 | 2603-023 | BEARING,FLOAT-ASSY-.645 DEEP NEG.SPR | 1 | $140.95 | |
| 27 | 1603-940 | SCREW-SET,8-32X.250 | 1 | $1.95 | |
| 28 | 3603-276 | SPACER,SHAFT-.504IDX1.125ODX.400"THK | 1 | $35.95 | |
| 29 | 3603-274 | SHAFT,CHROME-.180"IDX.498"ODX8.925" | 1 | $93.95 | |
| 30 | 2603-522 | GUIDE,SPRING-1.15OD X .800 TLG | 1 | $89.95 | |
| 31 | 2603-024 | SPRING,NEG.-2.500TLGX0.830IDX200LBS/IN | 1 | $17.95 | |
| 32 | 3603-275 | ROD,DAMPING ADJUST-.166 OD X 8.80" | 1 | $81.95 | |
| 33 | 2603-943 | JET,DAMPING ADJUST-.122ID X .375OD X1.6" | 1 | $28.95 | |
| 34 | 0603-540 | WASHER, TOP OUT-1.125OD X .378 ID X.093 | 1 | $16.49 | |
| 35 | 0603-335 | VALVE, .800X.010(3/8ID) | 1 | $12.95 | |
| 36 | 0603-338 | VALVE, .900X.010(3/8ID) | 1 | $14.95 | |
| 37 | 0603-341 | VALVE,1.000X.010(3/8ID) | 1 | $6.95 | |
| 38 | 0603-344 | VALVE,1.100X.010(3/8ID) | 1 | $12.95 | |
| 39 | 0603-347 | VALVE,1.250X.010(3/8ID) | 1 | $13.95 | |
| 40 | 0603-350 | VALVE,1.300X.010(3/8ID) | 1 | $17.95 | |
| 41 | 0603-336 | VALVE, .900X.006(3/8ID) | 1 | $15.11 | |
| 42 | 0603-349 | VALVE,1.300X.008(3/8ID) | 1 | $13.95 | |
| 43 | 0603-348 | VALVE,1.300X.006(3/8ID) | 1 | $13.95 | |
| 44 | 2603-995 | PISTON,HIGH FLOW-PM-.059 ORIFICE | 1 | $41.95 | |
| 45 | 0603-343 | VALVE,1.100X.008(3/8ID) | 1 | $6.95 | |
| 46 | 3604-171 | VALVE, .600X.004(3/8ID) | 1 | $12.95 | |
| 47 | 0603-333 | VALVE, .800X.006(3/8ID) | 1 | $13.95 | |
| 48 | 3604-170 | PLATE,TOP-OUT-1.125OD X .378ID X .080 | 1 | $21.95 | |
| 49 | 0603-389 | WASHER,BACKUP | 1 | $12.95 | |
| 50 | 3603-273 | BODY, FLOAT-1.459"X9.385" | 1 | $216.95 | |
| 51 | 2603-021 | BODY,CAP-ASSY-PIGGYBACK-1.459 BORE | 1 | $194.95 | |
| 52 | 3604-539 | KIT,REBUILD-1.834" BORE-RESERVOIR | 1 | $200.95 | |
| 53 | 1603-236 | O-RING, .210 C.S. X 1.350 ID | 1 | $11.95 | |
| 54 | 1603-235 | STRAP, PISTON - RES | 1 | $21.95 | |
| 55 | 1604-316 | SCREW, RELIEF W/ O-RING | 1 | $4.95 | |
| 56 | 1604-425 | O-RING(FOX ONLY) | 1 | $4.95 | |
| 57 | 0603-671 | O-RING, RES ENDCAP | 1 | $4.95 | |
| 58 | 0703-341 | VALVE,PRESSURE-ASS'Y | 1 | $56.95 | |
| 59 | 0624-097 | SCREW, MACH HSBH #8-32X.25 (SS) | 1 | $0.85 | |
| 60 | 2603-525 | END CAP,RESERVOIR-ASSY 1.834 BORE | 1 | $76.95 | |
| 61 | 0604-992 | RETAINER, .062X1.850 ID ENDCAP | 1 | $6.06 | |
| 62 | 3604-524 | PISTON,FLOATING-ASSY-1.834" BORE | 1 | $117.95 | |
| 63 | 2603-515 | RESERVOIR,1.834 BORE X 4.00 TLG | 1 | $164.95 | |
| 64 | 3603-007 | DECAL,GEN 2 FLOAT X RES.-2.15" X 6.25" | 1 | $22.01 | |
| 65 | 3603-003 | DAMPING ADJ. ASSY,PISTON-CONCENTRIC | 1 | $113.95 | |
| 66 | 0603-331 | VALVE, .700X.008(3/8ID) | 1 | $6.95 | |
| 67 | 2603-501 | VALVE,SHOCK-.700 X.010(1/4ID) | 1 | $13.95 | |
| 68 | 2603-500 | VALVE,SHOCK-.600 X.010(1/4ID) | 1 | $14.95 | |
| 69 | 2603-499 | VALVE,SHOCK-.500 X.006(1/4ID) | 1 | $18.95 | |
| 70 | 3604-165 | WASHER,BACKUP-.400OD X .252ID X .020THK | 1 | $13.95 | |
| 71 | 2603-527 | CARTRIDGE,SINGLE ADJ-DAMP ADJ ASSY | 1 | $112.95 | |
| 72 | 4639-012 | FLOAT FLUID,FOX RACING SHOX-8 OZ | 1 | $18.95 | |
| 73 | 5639-530 | SEMI-SYN SHOCK OIL-1 QUART | 1 | $26.95 |
