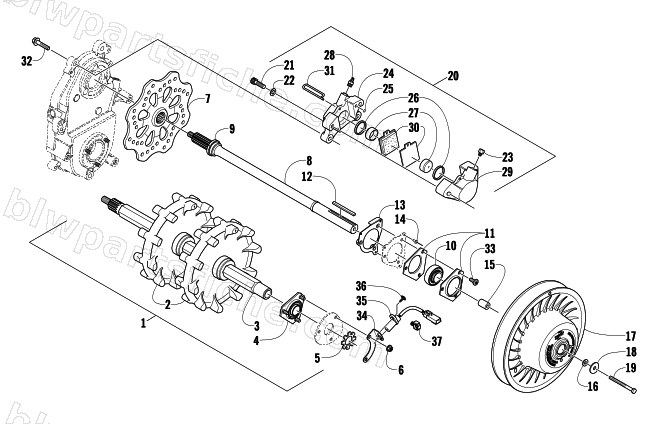

2013 Arctic Cat SNO PRO 500 — DRIVE TRAIN SHAFT AND BRAKE ASSEMBLIES
2013 SNO PRO 500
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0728-196 | TRACK DRIVE-10T/2.52-ASSY | 1 | $540.95 | |
| 2 | 1602-247 | SPROCKET,DRIVE-10T-7.94 DIA | 1 | $46.95 | |
| 3 | 2602-273 | SHAFT,DRIVE-(37.5 DEG PRESSURE ANGLE) | 1 | $614.95 | |
| 4 | 1702-194 | FLANGE,BEARING-INNER ASSY | 1 | $79.95 | |
| 5 | 2602-185 | WASHER,SPEEDO SENSOR | 1 | $69.95 | |
| 6 | 8047-426 | NUT,HEX FLG-NY LOCK 5/16-18 GR F Z&Y | 1 | $0.68 | |
| 7 | 2602-279 | DISC,BRAKE-FORGED-SPLINED | 1 | $263.95 | |
| 8 | 1702-195 | SHAFT,DRIVEN ASSY-MACH | 1 | $687.95 | |
| 9 | 1702-210 | COLLAR,HUB-BRAKE DISC-MACH | 1 | $13.73 | |
| 10 | 2602-390 | BEARING,1" W/O LOCK | 1 | $33.95 | |
| 11 | 0602-932 | PLATE,FLANGE-BRG. | 1 | $15.11 | |
| 12 | 0101-076 | KEY 3/16 X 1/4 X 3 | 1 | $2.75 | |
| 13 | 5606-989 | NUT,PLATE-DRIVEN SHAFT-Z&Y | 1 | $22.01 | |
| 14 | 8060-682 | RIVET,BLIND-DH SS62 ZINC | 1 | $0.12 | |
| 15 | 0648-785 | SHAFT,STUB-DRIVEN-1.320" | 1 | $16.49 | |
| 16 | 0123-053 | WASHER, FLAT 5/16 X 3/4 | 1 | $1.64 | |
| 17 | 0726-297 | CLUTCH,DRIVEN-BLK/BLUE-40/38-ASSY | 1 | $731.95 | |
| 19 | 8002-138 | SCREW,CAP-HH 5/16-18 X2.25 G5 Z&Y | 1 | $0.95 | |
| 20 | 1602-639 | CALIPER,BRAKE-FIXED/DUAL PISTON | 1 | $522.95 | |
| 21 | 8005-679 | SCREW, CAP-HSH 3/8-16X2.50 Z&Y | 1 | $3.85 | |
| 22 | 8050-272 | WASHER,FLAT- 3/8 X .734 X .063 Z&Y | 1 | $0.26 | |
| 23 | 0602-590 | FITTING,ADAPTER-1/8 NPT/DBL FLARE | 1 | $5.45 | |
| 25 | 0602-729 | O-RING,BRAKE HOUSING | 1 | $5.65 | |
| 26 | 0602-583 | O-RING, RETRACTOR-SQUARE | 1 | $22.01 | |
| 27 | 0602-708 | PISTON | 1 | $81.95 | |
| 28 | 0602-707 | SCREW, BLEED-ASSY | 1 | $6.89 | |
| 30 | 1702-429 | PAD,BRAKE-SET | 1 | $114.95 | |
| 32 | 1623-558 | SCREW, CAP-HFH 7/16-14 X 1.50 W/2353 | 1 | $6.47 | |
| 33 | 1623-766 | SCREW,TAPTITE-TSPNH-5/16-18X.75 W/2353 | 1 | $5.09 | |
| 34 | 2602-186 | STAMPING,SPEEDO SENSOR | 1 | $16.49 | |
| 35 | 0630-207 | SENSOR,SPEED-HALL-ACT-R | 1 | $77.95 | |
| 36 | 0623-797 | SCREW,SELF TAP-TSTH 10-12X1/2 WO/GP | 1 | $0.45 | |
| 37 | 1623-406 | CLIP,ROUTING-LOCKING-.350 | 1 | $2.47 |
