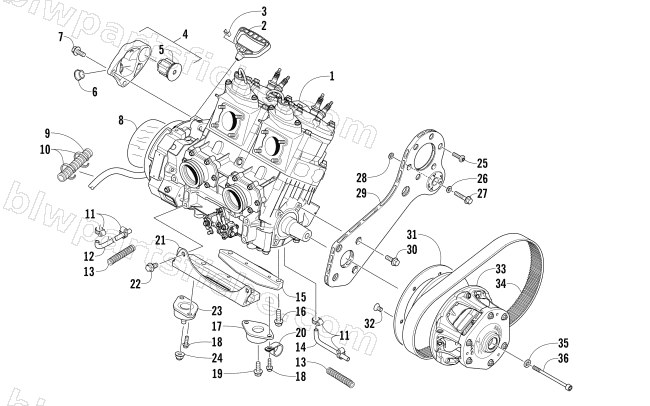

ENGINE AND RELATED PARTS
2013 M 800 SNO PRO LTD 162
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0662-609 | ENGINE,L/C-800 HO (W/O EFI/VALVE CABLES) | 1 | $4,457.95 | |
| 2 | 0636-363 | HANDLE,RECOIL-LARGE | 1 | $15.11 | |
| 3 | 0606-885 | CAP,RECOIL HANDLE | 1 | $1.37 | |
| 4 | 0708-582 | MOUNT,MAG-FABR | 1 | $42.95 | |
| 5 | 0608-630 | MOUNT,ENGINE | 1 | $42.95 | |
| 6 | 0608-633 | BUSHING,RECOIL ROPE | 1 | $0.68 | |
| 7 | 8409-026 | SCREW,CAP-HFH M10X1.25X25 CL10.9 W/2353 | 1 | $1.50 | |
| 8 | 4606-425 | FOIL,PROTECTIVE-RECOIL COVER-DIE CUT | 1 | $13.73 | |
| 9 | 1619-131 | LOOM,PROTECTIVE-3/4 ID-12"-CTL | 1 | $3.44 | |
| 10 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 11 | 0623-373 | CLAMP,HOSE #4 {6202} | 1 | $2.88 | |
| 12 | 0610-923 | HOSE,COOLANT-MAG/THROTTLE BODY | 1 | $22.01 | |
| 13 | 0619-776 | CONDUIT,FLEXIBLE-.62 ID-CTL 5' | 1 | $13.73 | |
| 14 | 0610-878 | HOSE,THROTTLE BODY PTO/WATER PUMP-17.5" | 1 | $17.87 | |
| 15 | 0708-602 | MOUNT,ENGINE-REAR MACH | 1 | $56.95 | |
| 16 | 8409-036 | SCREW,CAP-HFH M10X1.25X35 CL10.9 W/2353 | 1 | $1.92 | |
| 17 | 0608-496 | MOUNT,ENGINE | 1 | $49.95 | |
| 18 | 1623-944 | SCREW,SHLDER-HFH-M6-1.0X18 CLR.8 Z&Y | 1 | $1.92 | |
| 19 | 8409-017 | SCREW,CAP-HFH M10X1.25X16 CL10.9W/2353 | 1 | $1.92 | |
| 20 | 1623-080 | CLAMP, FLEX SHAFT (550/600) | 1 | $1.50 | |
| 21 | 0708-600 | MOUNT,ENGINE-FRT MACH | 1 | $56.95 | |
| 22 | 8409-021 | SCREW,CAP-HFH M10X1.25X20 CL10.9 W/2353 | 1 | $1.64 | |
| 23 | 0708-587 | MOUNT,ENGINE-W/STUD | 1 | $53.95 | |
| 24 | 8427-002 | NUT,HEX FLG-NYL LOCK M10X1.25 CL8 Z&Y | 1 | $0.95 | |
| 25 | 8468-617 | SCREW,MACH-TSPNH M6X1.0X16 CL8.8 W/2353 | 1 | $0.54 | |
| 26 | 8050-242 | WASHER,FLAT- 5/16 X .625 X .063 Z&Y | 1 | $2.06 | |
| 27 | 1623-932 | SCREW,CAP-HSH-M8X1.25X30/12.9 W/2353 BZ | 1 | $1.50 | |
| 28 | 0623-987 | WASHER, BELLVILE-.312 X .930 | 1 | $2.19 | |
| 29 | 0708-622 | BRKT,ENGINE MTG-PTO-ASSY | 1 | $180.95 | |
| 30 | 1623-937 | SCREW,CAP-HSH-M8-1.25X20 CL 12.9 W/2510 | 1 | $1.37 | |
| 31 | 0645-410 | RING,DAMPER - CLUTCH | 1 | $82.95 | |
| 32 | 1623-821 | SCREW,MACH-TSFH M8X1.25X14 CL10.9Z&Y | 1 | $8.21 | |
| 33 | 0746-435 | CLUTCH,DRIVE-UNCAL-8.25 33MM/S | 1 | $696.95 | |
| 34 | 0627-084 | BELT,DRIVE-DCVS S6A-S 36.8W X12070C | 1 | $235.95 | |
| 35 | 1623-649 | WASHER,CLUTCH BOLT | 1 | $5.65 | |
| 36 | 1623-792 | BOLT,CLUTCH-M12X1.25X157 | 1 | $26.95 |
