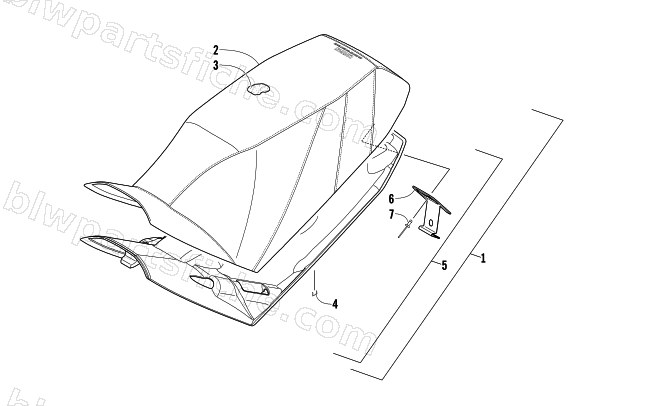

SEAT ASSEMBLY
2013 M 800 SNO PRO LTD 153
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 5706-429 | SEAT,ASSY-M 800 BLK LTD | 1 | $713.95 | |
| 1 | 5706-428 | SEAT,ASSY-M 800 PC PRL WHT | 1 | $713.95 | |
| 2 | 5706-425 | COVER,SEAT-M 800 BLK LTD | 1 | $432.95 | |
| 2 | 5706-424 | COVER,SEAT-M 800 PC PRL WHT | 1 | $432.95 | |
| 3 | 0717-203 | FOAM,SEAT-MTN (.48 RATIO @ 3.8 75-81ILD) | 1 | $164.95 | |
| 4 | 0624-528 | STAPLE,5/16L X 1/2W-20GA SS/5000 PAK-SEA | 1 | $161.95 | |
| 5 | 5706-241 | BASE,SEAT-MC-W/SEAT LATCH HOOK | 1 | $133.95 | |
| 6 | 6606-452 | HOOK,SEAT LATCH | 1 | $17.87 | |
| 7 | 8061-686 | RIVET,BLIND-LF SS64 ZINC | 1 | $0.95 |
