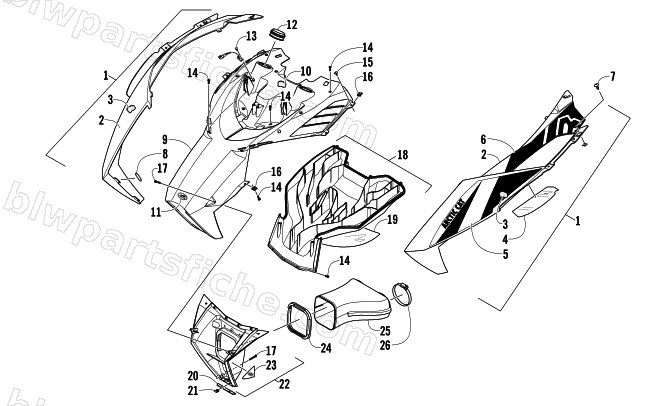

2013 Arctic Cat M 800 HCR 153 — HOOD AND AIR INTAKE ASSEMBLY
2013 M 800 HCR 153
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3718-532 | HOOD,W/DECALS-RH-WHT (M HCR) | 1 | $181.95 | |
| 1 | 3718-533 | HOOD,W/DECALS-LH-WHT (M HCR) | 1 | $181.95 | |
| 2 | 3718-612 | HOOD,W/FOAM-RH-WHT | 1 | $150.95 | |
| 2 | 3718-613 | HOOD,W/FOAM-LH-WHT | 1 | $168.95 | |
| 3 | 0617-646 | FOAM,HOOD-RH | 1 | $13.73 | |
| 3 | 0617-647 | FOAM,HOOD-LH | 1 | $24.77 | |
| 4 | 6606-407 | FOIL,PROTECTIVE-HOOD-LH | 1 | $2.61 | |
| 5 | 0621-006 | DECAL,HOOD-FWD-GRN-RH (SNO PRO) | 1 | $30.95 | |
| 5 | 0621-007 | DECAL,HOOD-FWD-GRN-LH (SNO PRO) | 1 | $30.95 | |
| 6 | 0621-078 | DECAL,HOOD-UPPER-GRN-RH (HCR) | 1 | $24.77 | |
| 6 | 0621-079 | DECAL,HOOD-UPPER-GRN-LH (HCR) | 1 | $24.77 | |
| 7 | 0623-784 | R/B 2623-163 | 1 | $0.35 | |
| 8 | 1623-960 | O-RING,1 1/16 ID X 1 1/4 OD | 1 | $1.37 | |
| 9 | 5706-356 | PLENUM,INTAKE-UPPER W/FOAM | 1 | $191.95 | |
| 10 | 0617-648 | FOAM,PLENUM INTAKE 800 | 1 | $53.95 | |
| 11 | 9611-752 | DECAL,EMBLEM-GREEN | 1 | $43.95 | |
| 12 | 6606-386 | SEAL,UPPER PLENUM | 1 | $3.57 | |
| 13 | 0623-165 | CLIP, X-MAS TREE-5/32 | 1 | $1.50 | |
| 14 | 1623-933 | SCREW,PLASTITE-TXSPNH 10-14X3/4 Z&B | 1 | $0.26 | |
| 15 | 0623-797 | SCREW,SELF TAP-TSTH 10-12X1/2 WO/GP | 1 | $0.45 | |
| 16 | 1623-939 | NUT,SPEED-#10 B "U" TYPE | 1 | $1.23 | |
| 17 | 1623-929 | SCREW,PLASTITE-TXSPNH 10-14X1 1/2 Z&B | 1 | $1.37 | |
| 18 | 5706-358 | PLENUM,INTAKE-LOWER REAR W/FOIL | 1 | $167.95 | |
| 19 | 6606-406 | FOIL,PROTECTIVE-PLENUM | 1 | $3.57 | |
| 20 | 0617-682 | FOAM,PLENUM INTAKE-LWR | 1 | $16.49 | |
| 21 | 1623-637 | CLIP,U-NUT (M5) | 1 | $2.47 | |
| 22 | 5706-990 | PLENUM,AIR INTAKE-LWR FRT-W/REFLECTOR | 1 | $50.95 | |
| 23 | 0621-989 | DECAL,REFLECTOR-AMBER | 1 | $15.11 | |
| 24 | 0617-624 | SEAL,AIR SILENCER | 1 | $9.59 | |
| 25 | 2670-328 | BOOT,EXTENSION-EFI ASSY | 1 | $88.95 | |
| 26 | 0423-018 | CLAMP,HOSE-WORM (NORMA 60-80) | 1 | $6.47 |
