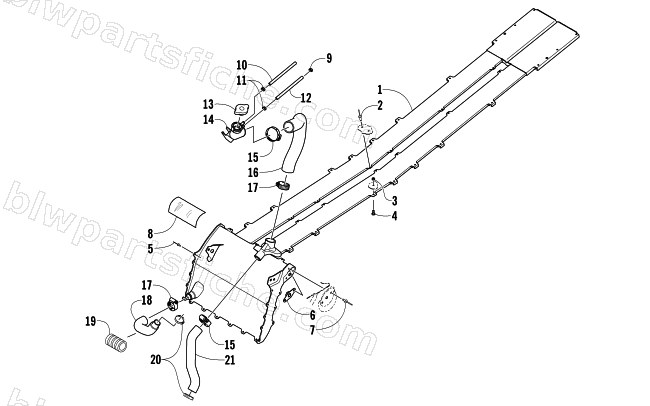

COOLING ASSEMBLY
2013 M 800 153
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0713-078 | EXCH,HEAT-2 STRK 153"/162"-WELD'T | 1 | $648.95 | |
| 2 | 8060-682 | RIVET,BLIND-DH SS62 ZINC | 1 | $0.12 | |
| 3 | 8422-502 | NUT, M5 X 0.8 NYLOC - YL ZN | 1 | $0.40 | |
| 4 | 8476-516 | SCREW,MACH-TSTRH M5X0.8X16 Z&Y | 1 | $1.37 | |
| 5 | 8060-686 | RIVET,BLIND-DH SS64 ZINC | 1 | $0.40 | |
| 6 | 0608-631 | PLATE,NUT-PTO-ENG/CHASSIS | 1 | $27.95 | |
| 7 | 8060-688 | RIVET,BLIND-DH SS66 ZINC | 1 | $0.40 | |
| 8 | 0619-206 | TAPE,ALUM FOIL - 6" X 30 FT | 1 | $7.77 | |
| 9 | 1623-619 | CLAMP,HOSE-CRIMP-10.5 | 1 | $4.54 | |
| 10 | 0610-692 | HOSE,OIL/WATER-25 FT | 1 | $117.95 | |
| 10 | 0610-693 | HOSE,OIL-100 FT | 1 | $432.95 | |
| 11 | 1623-655 | CLAMP,HOSE-CRIMP-11.3 | 1 | $3.30 | |
| 12 | 0610-538 | HOSE,VENT- 25' (1054-152) | 1 | $117.95 | |
| 13 | 2606-284 | CAP, MINI RADIATOR | 1 | $32.95 | |
| 14 | 0613-030 | NECK,FILLER-COOLANT | 1 | $15.11 | |
| 15 | 0423-317 | CLAMP, HOSE -32/50 (NORMA 962) | 1 | $2.75 | |
| 16 | 0613-097 | HOSE,COOLANT TANK | 1 | $58.95 | |
| 17 | 1623-981 | CLAMP,HOSE-25/40 (NORMA) | 1 | $2.88 | |
| 18 | 0610-864 | HOSE,COOLANT-ENGINE TO EXCH | 1 | $17.87 | |
| 19 | 0619-619 | HOSE,PROT-CORRUGETED-4" 1.06 ID BLK NY | 1 | $3.44 | |
| 20 | 1623-656 | CLAMP,H0SE-CRIMP-36.1 | 1 | $3.99 | |
| 21 | 0613-033 | HOSE,COOLANT-TANK/ENGINE | 1 | $24.77 |
