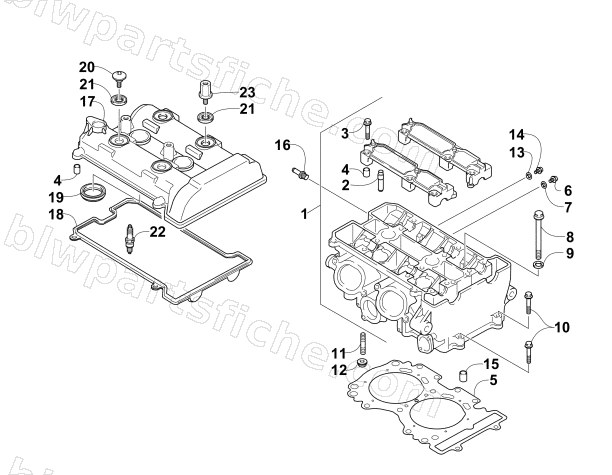

CYLINDER HEAD ASSEMBLY
2013 M 1100 TURBO SNO PRO 162
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3007-853 | HEAD,CYLINDER-ASSY | 1 | $1,979.95 | |
| 2 | 3403-056 | GUIDE,VALVE | 1 | $38.95 | |
| 3 | 3007-070 | BOLT,CAMSHAFT HOUSING(6X39) | 1 | $2.95 | |
| 4 | 3423-043 | PIN,ALIGNMENT,8MM | 1 | $9.59 | |
| 5 | 3007-072 | GASKET,CYL HEAD | 1 | $108.95 | |
| 6 | 3006-598 | BOLT,AIR RELEASE | 1 | $5.92 | |
| 7 | 3003-290 | GASKET,CHECK VALVE,6MM | 1 | $3.85 | |
| 8 | 3007-073 | BOLT,CYL HEAD (10X105) | 1 | $13.95 | |
| 9 | 3007-495 | WASHER,CYL HEAD BOLT(10.5X19X2) | 1 | $2.47 | |
| 10 | 3007-496 | BOLT,CYL HEAD | 1 | $3.16 | |
| 11 | 3007-074 | BOLT,STUD (L:32) | 1 | $12.35 | |
| 12 | 3007-390 | NUT,INTER COOLER | 1 | $3.16 | |
| 14 | 3007-497 | PLUG,OIL GALLERY | 1 | $5.37 | |
| 15 | 3423-088 | PIN, CYLINDER HEAD KNOCK(ALIGMENT) | 1 | $4.54 | |
| 16 | 3007-075 | UNION,WATER BYPASS HOSE | 1 | $20.63 | |
| 17 | 3007-076 | COVER,CYL HEAD | 1 | $561.95 | |
| 18 | 3007-077 | GASKET,CYL HEAD COVER | 1 | $66.95 | |
| 19 | 3007-078 | GASKET,CYL HEAD COVER | 1 | $17.87 | |
| 20 | 3423-646 | BOLT (7X17.5) | 1 | $5.65 | |
| 21 | 3423-680 | WASHER | 1 | $5.92 | |
| 22 | 0217-806 | SPARK PLUG,MR8AI-9 (SOLID) | 1 | $19.25 | |
| 23 | 3007-776 | BOLT,CYLINDER HEAD COVER | 1 | $33.95 |
