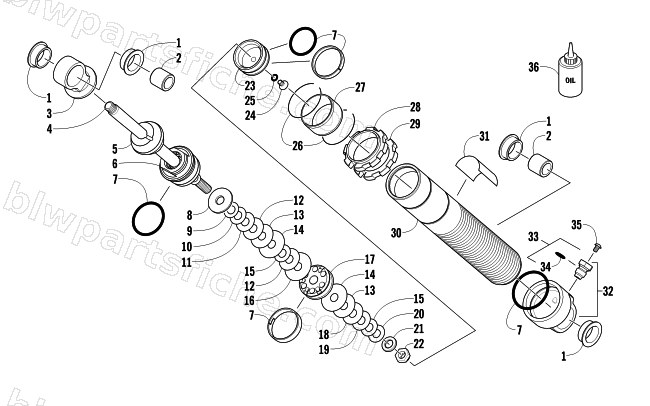

FRONT SUSPENSION SHOCK ABSORBER
2013 M 1100 TURBO 153
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 2703-954 | SHOCK,SKI-ZERO PRO-17.18" | 1 | $425.95 | |
| 1 | 1604-222 | BUSHING,REAR ARM SHOCK-.125" LIP | 1 | $17.87 | |
| 2 | 2604-223 | SLEEVE, .571 X .815 X .950TLG | 1 | $33.95 | |
| 3 | 0603-910 | EYELET,SHOCK-FR SUSP(FOX ONLY) | 1 | $97.95 | |
| 4 | 3603-220 | SHAFT,SHOCK-.498" X 8.750" TLG | 1 | $36.95 | |
| 5 | 2603-459 | BUMPER,FOX SHOCK - 1" | 1 | $44.95 | |
| 6 | 2604-413 | BEARING,ENDCAP.498" X 1.21"-ASSY | 1 | $151.95 | |
| 7 | 2604-815 | SEAL/BEARING-REBUILD KIT | 1 | $92.95 | |
| 8 | 0603-540 | WASHER, TOP OUT-1.125OD X .378 ID X.093 | 1 | $16.49 | |
| 9 | 0603-878 | VALVE, SHOCK .700X.012(040-12-070) | 1 | $12.95 | |
| 10 | 0603-334 | VALVE, .800X.008 (3/8ID) | 1 | $12.95 | |
| 11 | 0603-337 | VALVE, .900X.008(3/8ID) | 1 | $12.95 | |
| 12 | 0603-340 | VALVE,1.000X.008(3/8ID) | 1 | $12.95 | |
| 13 | 0603-343 | VALVE,1.100X.008(3/8ID) | 1 | $6.95 | |
| 14 | 0603-346 | VALVE,1.250X.008(3/8ID) | 1 | $6.95 | |
| 15 | 0603-335 | VALVE, .800X.010(3/8ID) | 1 | $12.95 | |
| 16 | 0603-348 | VALVE,1.300X.006(3/8ID) | 1 | $13.95 | |
| 17 | 0603-209 | PISTON,SHOCK-.081 DIA HOLE | 1 | $79.95 | |
| 18 | 0603-341 | VALVE,1.000X.010(3/8ID) | 1 | $6.95 | |
| 19 | 0603-338 | VALVE, .900X.010(3/8ID) | 1 | $14.95 | |
| 20 | 0603-333 | VALVE, .800X.006(3/8ID) | 1 | $13.95 | |
| 21 | 0603-389 | WASHER,BACKUP | 1 | $12.95 | |
| 22 | 0603-301 | NUT,CAP-FOX SHOCK | 1 | $6.95 | |
| 23 | 2604-816 | PISTON,FLOATING-ASSY | 1 | $116.95 | |
| 24 | 1604-316 | SCREW, RELIEF W/ O-RING | 1 | $4.95 | |
| 25 | 1604-425 | O-RING(FOX ONLY) | 1 | $4.95 | |
| 26 | 2603-245 | RETAINER,.062 CS X 1.54 OD-WEAR SLEEVE | 1 | $6.89 | |
| 27 | 2603-246 | GUIDE,SPRING-ALUM BODY | 1 | $26.95 | |
| 28 | 2604-840 | RING,PRELOAD-2.40 OD X .600 TLG | 1 | $50.95 | |
| 29 | 2604-841 | RING,PRELOAD LOCK-2.40 OD X .300 TLG | 1 | $50.95 | |
| 30 | 3603-221 | BODY,SHOCK-1.459" BORE X 8.66" TLG | 1 | $120.95 | |
| 31 | 2604-897 | DECAL,SHOCK-ZERO PRO 5.1X1.375(2005) | 1 | $23.39 | |
| 32 | 2604-817 | BODY,CAP-ALUM BODY-ASSY | 1 | $164.95 | |
| 33 | 0703-341 | VALVE,PRESSURE-ASS'Y | 1 | $56.95 | |
| 34 | 1604-318 | O-RING-END CAP FITTING(FOX ONLY) | 1 | $11.95 | |
| 35 | 0624-097 | SCREW, MACH HSBH #8-32X.25 (SS) | 1 | $0.85 | |
| 36 | 5639-530 | SEMI-SYN SHOCK OIL-1 QUART | 1 | $26.95 |
