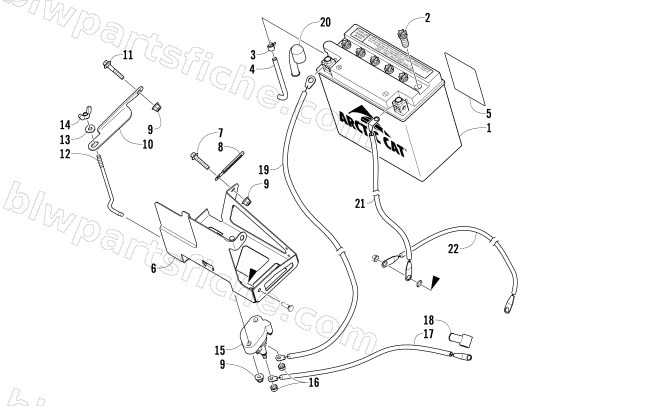

BATTERY AND TRAY ASSEMBLY
2013 F5
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0745-047 | R/B 0745-423 | 1 | $167.95 | |
| 2 | 0645-045 | BATTERY CAP | 1 | $1.92 | |
| 3 | 0645-152 | CLAMP, HOSE-BATTERY VENT | 1 | $2.47 | |
| 4 | 0645-263 | HOSE, BATTERY VENT-550MM | 1 | $3.44 | |
| 5 | 0645-430 | LABEL,POISON/DANGER-HORIZ FORMAT | 1 | $1.64 | |
| 6 | 0745-315 | TRAY, BATTERY-PTD BLK | 1 | $85.95 | |
| 7 | 8408-630 | SCREW,CAP-HFH M6X1.0X30 CL8.8 Z&Y | 1 | $0.95 | |
| 8 | 1623-984 | CLAMP,WIRE - 76.14MM LG W/6.25 HOLE | 1 | $6.20 | |
| 9 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 10 | 0745-318 | BRKT,HOLD DOWN-BATTERY-PTD BLK | 1 | $12.35 | |
| 11 | 1623-725 | SCREW,SHOULDER-HFH M6X1.00X35 CL8.8Z&Y | 1 | $3.85 | |
| 12 | 0745-329 | ROD, HOLD DOWN-BATTERY-PTD BLK | 1 | $15.11 | |
| 13 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 14 | 0423-716 | WINGNUT,NYLOC-M6X1.0 | 1 | $3.85 | |
| 16 | 0623-038 | NUT,HEX M6 Z&Y-SEMS (W/WASHER) | 1 | $0.26 | |
| 17 | 0645-594 | CABLE,SOLENOID/STARTER-500/600 | 1 | $39.95 | |
| 18 | 0645-327 | BOOT,TERMINAL-SOLENOID | 1 | $1.64 | |
| 19 | 0645-587 | CABLE, BATTERY TO SOLENOID-15.50" | 1 | $34.95 | |
| 20 | 0645-521 | BOOT,TERMINAL-BATTERY | 1 | $3.85 | |
| 21 | 0645-586 | CABLE, BATTERY-GROUND | 1 | $32.95 | |
| 22 | 0645-595 | CABLE, STARTER/GROUND-500/600 | 1 | $22.01 |
