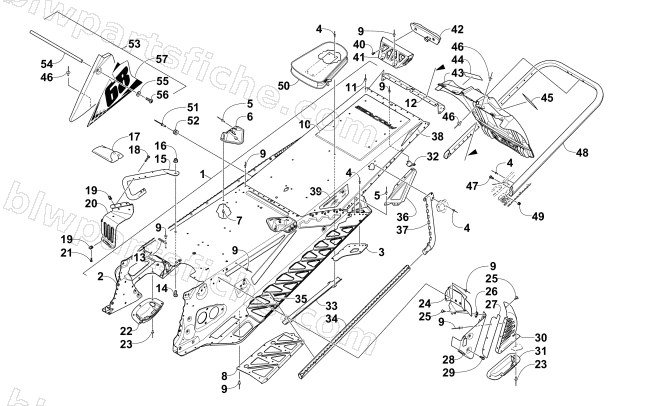

2013 Arctic Cat F 800 TUCKER HIBBERT SIGNATURE EDITION — TUNNEL, REAR BUMPER, AND SNOWFLAP ASSEMBLY
2013 F 800 TUCKER HIBBERT SIGNATURE EDITION
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 1707-930 | CHASSIS-128" 2 STRK RR-PTD BLK | 1 | $2,646.95 | |
| 1 | 2707-178 | TUNNEL,HP-RR S/P ASSY-PTD BLK | 1 | $1,110.95 | |
| 2 | 2707-177 | TUNNEL,FRONT-RR S/P ASSY-PTD BLK | 1 | $718.95 | |
| 3 | 1707-916 | BRKT,REAR SUSP-OUTER RH-PTD BLK | 1 | $22.01 | |
| 3 | 1707-917 | BRKT,REAR SUSP-OUTER LH-PTD BLK | 1 | $22.01 | |
| 4 | 8060-706 | RIVET,BLIND-DH SS64 BLK | 1 | $0.40 | |
| 5 | 1623-241 | RIVET,3/16 HUCK-M6 | 1 | $1.92 | |
| 6 | 1707-692 | BRKT,SPAR SUPPORT-RH-PTD BLK | 1 | $30.95 | |
| 6 | 1707-693 | BRKT,SPAR SUPPORT-LH-PTD BLK | 1 | $38.95 | |
| 7 | 1623-257 | RIVET,3/16 HUCK-M5 | 1 | $2.06 | |
| 8 | 2707-172 | SUPPORT,RUNNING BOARD-RH-PTD BLK | 1 | $106.95 | |
| 8 | 2707-173 | SUPPORT,RUNNING BOARD-LH-PTD BLK | 1 | $106.95 | |
| 9 | 8060-702 | RIVET,BLIND-DH SS62 BLK | 1 | $0.26 | |
| 10 | 1707-835 | TUNNEL,REAR-128-PTD BLK | 1 | $203.95 | |
| 11 | 8060-504 | RIVET,BLIND-DH SS53 BLK | 1 | $0.26 | |
| 12 | 1707-725 | END CAP,TUNNEL-PTD BLK | 1 | $38.95 | |
| 13 | 1623-984 | CLAMP,WIRE - 76.14MM LG W/6.25 HOLE | 1 | $6.20 | |
| 14 | 8476-820 | SCREW,MACH-TSTRH M8X1.25X20 Z&Y | 1 | $0.95 | |
| 15 | 1707-454 | HOOK,TOE-RH PTD BLK | 1 | $65.95 | |
| 15 | 1707-455 | HOOK,TOE-LH PTD BLK | 1 | $65.95 | |
| 16 | 8427-802 | NUT,HEX FLG-NYL LOCK M8X1.25 CL8 Z&Y | 1 | $0.54 | |
| 17 | 0744-078 | KIT,TOOL BAG-2 STRK RR-ASSY | 1 | $60.95 | |
| 18 | 8468-536 | SCREW,MACH-TSPNH M5X0.8X35 CL8.8 W/2353 | 1 | $1.78 | |
| 19 | 1623-637 | CLIP,U-NUT (M5) | 1 | $2.47 | |
| 20 | 1707-556 | TOE STOP,RH - FORMED-PTD BLK | 1 | $29.95 | |
| 20 | 1707-557 | TOE STOP,LH - FORMED-PTD BLK | 1 | $29.95 | |
| 21 | 8475-512 | SCREW,MACH-TSTRH M5X0.8X12 Z&CLR | 1 | $0.95 | |
| 22 | 1607-109 | PROTECTOR,CHAIN CASE | 1 | $5.51 | |
| 23 | 8061-708 | RIVET, BLIND-LF SS66 BLACK | 1 | $0.95 | |
| 24 | 1702-278 | MOUNT,CLUTCH GUARD-ASSY | 1 | $27.95 | |
| 25 | 1623-129 | R/B 2623-166 | 1 | $0.35 | |
| 26 | 1623-052 | NUT,U | 1 | $0.95 | |
| 27 | 1707-639 | GUARD,TOE-PTD BLK | 1 | $12.35 | |
| 28 | 1607-118 | COVER,SHIELD-BRAKE CALIPER | 1 | $34.95 | |
| 29 | 8408-613 | SCREW,CAP-HFH M6X1.0X12 CL8.8 Z&Y W/2353 | 1 | $1.50 | |
| 30 | 1707-563 | COVER,SHIELD-BRAKE DISC-PTD BLK | 1 | $70.95 | |
| 31 | 0607-351 | PROTECTOR,BRAKE DISC-BOTTOM | 1 | $12.35 | |
| 32 | 0630-292 | PROTECTOR,TAILLIGHT HARNESS-26.5mm | 1 | $15.11 | |
| 33 | 0630-308 | PROTECTOR,TAILLIGHT HARNESS-128" | 1 | $16.49 | |
| 34 | 2707-170 | ROLL,TUNNEL-RH-PTD BLK | 1 | $77.95 | |
| 34 | 2707-171 | ROLL,TUNNEL-LH-PTD BLK | 1 | $77.95 | |
| 35 | 1623-130 | RIVET,3/16 HUCK-M4 | 1 | $1.64 | |
| 36 | 1707-698 | GUSSET,RUNNING BOARD-RH-PTD BLK | 1 | $27.95 | |
| 36 | 1707-699 | GUSSET,RUNNING BOARD-LH-PTD BLK | 1 | $27.95 | |
| 37 | 1707-700 | GUSSET,TUNNEL-RH-PTD BLK | 1 | $30.95 | |
| 37 | 1707-701 | GUSSET,TUNNEL-LH-PTD BLK | 1 | $29.95 | |
| 38 | 0621-990 | DECAL,REFLECTOR-RED | 1 | $15.11 | |
| 39 | 0621-556 | DECAL,TUNNEL-RH | 1 | $42.95 | |
| 39 | 0621-557 | DECAL,TUNNEL-LH | 1 | $42.95 | |
| 40 | 8470-512 | SCREW,MACH-TSPNH M5X.8X12 CL8.8 Z&Y | 1 | $0.95 | |
| 41 | 0730-164 | R/B 0730-227 | 1 | $31.95 | |
| 42 | 0609-898 | TAILLIGHT,RED | 1 | $66.95 | |
| 43 | 6606-394 | FLAP,SNOW-MTN-BLK | 1 | $106.95 | |
| 44 | 5611-852 | DECAL,WARNING-TOWING/TRACK-FRENCH | 1 | $2.47 | |
| 45 | 5611-853 | DECAL,WARNING-TOWING/TRACK-ENGLISH | 1 | $2.47 | |
| 46 | 8061-706 | RIVET,BLIND-LF SS64 BLACK | 1 | $0.95 | |
| 47 | 8476-620 | SCREW,MACH-TSTRH M6X1.0X20 Z&Y | 1 | $0.40 | |
| 48 | 2707-578 | BUMPER,REAR-129"-PTD-BLK | 1 | $101.95 | |
| 49 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 50 | 6606-615 | BAG,BELT | 1 | $46.95 | |
| 51 | 8060-630 | RIVET,BLIND-DH AA68 BLK | 1 | $1.23 | |
| 52 | 1623-940 | GROMMET,SEAT BAG | 1 | $2.06 | |
| 53 | 3718-818 | KIT,NUMBER PLATE-W/DECAL | 1 | $197.95 | |
| 54 | 6606-698 | TUBE,MOUNTING - NUMBER PLATE | 1 | $46.95 | |
| 55 | 8450-108 | WASHER,FLAT M6-6.87X25.4X2.3 Z&C | 1 | $5.92 | |
| 56 | 8468-616 | SCREW,MACH-TSPNH M6X1.0X16 CL8.8 BLK | 1 | $0.68 | |
| 57 | 0621-558 | DECAL,NUMBER PLATE-RH | 1 | $54.95 | |
| 57 | 0621-559 | DECAL,NUMBER PLATE-LH | 1 | $54.95 |
