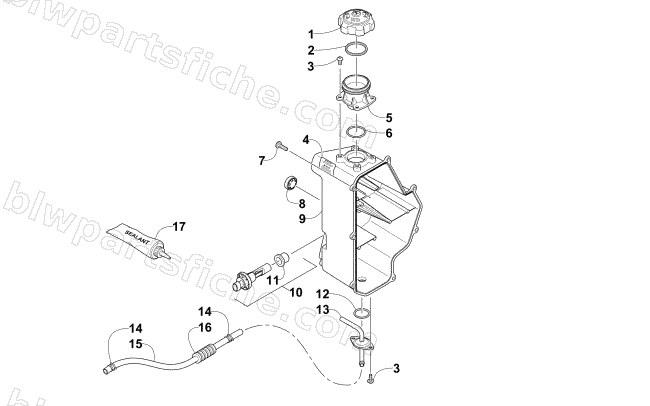

OIL TANK ASSEMBLY
2013 F 800 SNO PRO
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1670-365 | CAP, VENTED- OIL IMPRINTED | 1 | $33.95 | |
| 2 | 0109-733 | SEAL,GAS CAP | 1 | $3.57 | |
| 3 | 1623-969 | SCREW,MAG FORM-TXPH-M6X2.0X12 Z&C | 1 | $1.64 | |
| 4 | 4611-532 | DECAL,OIL TANK-VEV SYNTHETIC | 1 | $2.75 | |
| 5 | 2670-329 | NECK,OIL TANK | 1 | $8.21 | |
| 6 | 1623-972 | O-RING,33MM X 3MM-N70 | 1 | $1.09 | |
| 7 | 1623-814 | SCREW,MAG FORM-TXPH-M6X2.0X24 | 1 | $1.09 | |
| 8 | 2670-257 | GLASS,SIGHT | 1 | $13.73 | |
| 9 | 1770-019 | TANK,OIL-2 STRK-MACH | 1 | $145.95 | |
| 10 | 0609-915 | SWITCH, LEVEL-OIL | 1 | $49.95 | |
| 11 | 0609-924 | GROMMET, SWITCH-OIL LEVEL | 1 | $12.35 | |
| 12 | 0648-441 | O-RING,ADJUSTER SHEAVE (2-121) | 1 | $0.54 | |
| 13 | 2670-229 | NIPPLE,OIL TANK-2 STRK | 1 | $39.95 | |
| 14 | 1623-042 | CLAMP, 10 MM | 1 | $1.09 | |
| 15 | 0610-692 | HOSE,OIL/WATER-25 FT | 1 | $117.95 | |
| 15 | 0610-693 | HOSE,OIL-100 FT | 1 | $432.95 | |
| 16 | 1619-345 | LOOM, HIGH TEMP-3/8" X 3'- CTL | 1 | $31.95 | |
| 17 | 1048-063 | LOCTITE,5699-GASKET MAKER(70ML) | 1 | $69.95 |
