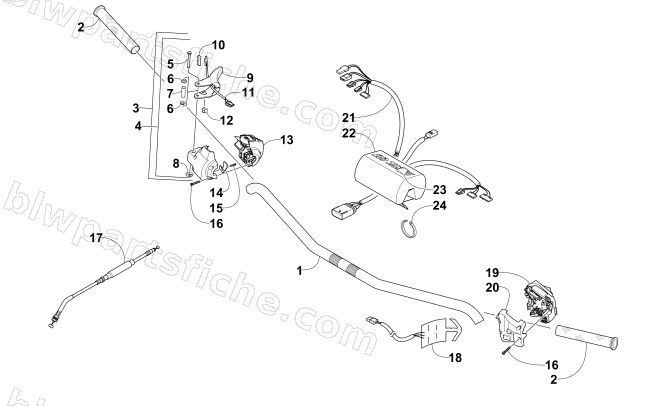

HANDLEBAR AND CONTROLS
2013 F 800 SNO PRO RR
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1705-092 | HANDLEBAR-PTD BLK | 1 | $77.95 | |
| 2 | 4606-945 | GRIP,HANDLEBAR-6.25" | 1 | $17.87 | |
| 3 | 0609-888 | CONTROL,THROTTLE-R/H-REAR (36MM) | 1 | $105.95 | |
| 4 | 0609-859 | KIT, THROTTLE LEVER MOUNTING | 1 | $30.95 | |
| 11 | 0609-827 | ELEMENT,THUMBWARMER-H/L (15V) | 1 | $74.95 | |
| 12 | 0609-595 | CLIP,RETAINER-TW HARNESS | 1 | $2.47 | |
| 13 | 0609-880 | CONTROL, R/H-FRONT W/REV-2 STRK-2010 | 1 | $94.95 | |
| 14 | 0609-792 | COVER, CONTROL-RH-CONNECTOR RETENTION | 1 | $1.92 | |
| 15 | 0609-793 | SCREW, #4-24 HI-LO X .50" | 1 | $0.26 | |
| 16 | 0609-791 | SCREW,SELF TAP-TXPNH #8-18 X .875 HI-LO | 1 | $0.12 | |
| 17 | 0687-223 | CABLE,THROTTLE | 1 | $60.95 | |
| 18 | 0609-856 | ELEMENT,HW-RH H/L | 1 | $46.95 | |
| 18 | 0609-857 | ELEMENT,HW-LH H/L | 1 | $46.95 | |
| 19 | 0609-929 | CONTROL,LH-W/O PTT-FRT | 1 | $96.95 | |
| 20 | 0609-883 | CONTROL,L/H-REAR | 1 | $13.73 | |
| 21 | 1686-654 | HARNESS,HANDLEBAR-2 STRK-HCR | 1 | $185.95 | |
| 22 | 1705-453 | WRAP,HANDLEBAR - ASSY | 1 | $54.95 | |
| 23 | 0605-986 | FOAM,HANDLEBAR | 1 | $19.25 | |
| 24 | 0123-811 | TIE,CABLE-4 INCH PLT1M | 1 | $0.26 | |
| 24 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 |
