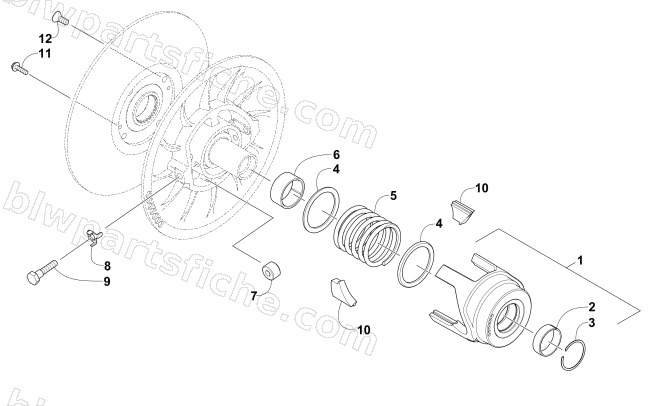

DRIVEN CLUTCH
2013 F 800 SNO PRO RR
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 0726-348 | R/B 0637-444 | 1 | $679.95 | |
| 1 | 0748-771 | CAM,DRIVEN-44/40 MACH | 1 | $150.95 | |
| 1 | 0748-770 | CAM,DRIVEN-36 MACH | 1 | $197.95 | |
| 2 | 0648-831 | BEARING,INNER-MACH | 1 | $33.95 | |
| 3 | 0648-811 | RING,SNAP-43mm | 1 | $2.06 | |
| 4 | 0648-810 | SEAT, SPRING-DRIVEN | 1 | $17.87 | |
| 5 | 0648-813 | SPRING,DRIVEN-202-284 BLUE | 1 | $20.63 | |
| 6 | 0648-827 | SPACER,DRIVEN | 1 | $12.35 | |
| 7 | 0648-824 | ROLLER,DRIVEN-TORLON | 1 | $27.95 | |
| 8 | 0648-800 | WASHER,TAB LOCK-10MM | 1 | $1.23 | |
| 9 | 0648-799 | SCREW,CAM ROLLER-M10X1.5-40 CL 8.8 | 1 | $4.40 | |
| 10 | 0648-826 | CAM,BACK-2 STRK | 1 | $3.99 | |
| 11 | 0623-684 | SCREW,SELF TAP-HWH #12X1-HILO-Z&Y | 1 | $0.95 | |
| 12 | 1623-013 | SCREW,MACH-TSFH-M8X1.25X25 10.9 W/204 | 1 | $1.64 |
