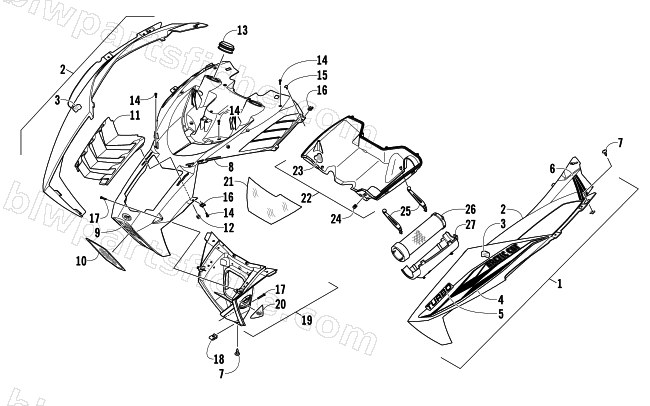

2013 Arctic Cat F 1100 TURBO SNO PRO RR — HOOD AND AIR INTAKE ASSEMBLY
2013 F 1100 TURBO SNO PRO RR
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3718-603 | HOOD,W/DECALS-LH GRN-SNO PRO RR TURBO | 1 | $160.95 | |
| 1 | 3718-602 | HOOD,W/DECALS-RH WHT-SNO PRO RR TURBO | 1 | $160.95 | |
| 1 | 3718-650 | HOOD,W/DECALS-RH GRN SP RR TRB | 1 | $187.95 | |
| 1 | 3718-651 | HOOD,W/DECALS-LH WHT SP RR TRB | 1 | $181.95 | |
| 2 | 3718-315 | HOOD,W/FOIL-LH-GRN | 1 | $141.95 | |
| 2 | 3718-620 | HOOD,W/FOIL-4 STRK RH-WHT | 1 | $144.95 | |
| 2 | 3718-564 | HOOD,W/FOIL-RH-GRN | 1 | $163.95 | |
| 2 | 3718-621 | HOOD,W/FOIL-LH-WHT | 1 | $164.95 | |
| 3 | 6606-415 | FOIL,PROTECTIVE-HOOD-LH | 1 | $4.40 | |
| 3 | 6606-420 | FOIL,HOOD-RH | 1 | $3.02 | |
| 4 | 0621-101 | DECAL,HOOD-FWD LH GRN | 1 | $46.95 | |
| 4 | 0621-172 | DECAL,HOOD-FWD RH WHT | 1 | $19.25 | |
| 4 | 0621-100 | DECAL,HOOD-FWD RH GRN | 1 | $49.95 | |
| 4 | 0621-173 | DECAL,HOOD-FWD LH WHT | 1 | $19.25 | |
| 5 | 9611-596 | DECAL,TURBO BLK/CLEAR | 1 | $3.85 | |
| 6 | 0621-099 | DECAL,HOOD-UPR LH GRN | 1 | $13.73 | |
| 6 | 0621-170 | DECAL,HOOD-UPR RH WHT | 1 | $13.73 | |
| 6 | 0621-098 | DECAL,HOOD-UPR RH GRN | 1 | $13.73 | |
| 6 | 0621-171 | DECAL,HOOD-UPR LH WHT | 1 | $13.73 | |
| 7 | 0623-784 | R/B 2623-163 | 1 | $0.35 | |
| 8 | 6606-276 | R/B 6706-152 | 1 | $251.95 | |
| 9 | 9611-752 | DECAL,EMBLEM-GREEN | 1 | $43.95 | |
| 10 | 0608-696 | SCREEN,PLENUM | 1 | $20.63 | |
| 11 | 6606-388 | GRILLE,INTERCOOLER-BLK | 1 | $24.77 | |
| 12 | 1623-765 | CLIP,RETAINING-HOOD | 1 | $1.50 | |
| 13 | 6606-386 | SEAL,UPPER PLENUM | 1 | $3.57 | |
| 14 | 1623-933 | SCREW,PLASTITE-TXSPNH 10-14X3/4 Z&B | 1 | $0.26 | |
| 15 | 0623-797 | SCREW,SELF TAP-TSTH 10-12X1/2 WO/GP | 1 | $0.45 | |
| 16 | 1623-939 | NUT,SPEED-#10 B "U" TYPE | 1 | $1.23 | |
| 17 | 1623-129 | R/B 2623-166 | 1 | $0.35 | |
| 18 | 1623-637 | CLIP,U-NUT (M5) | 1 | $2.47 | |
| 19 | 5706-991 | PLENUM,AIR INTAKE-LWR FRT-W/REFLECTOR(T) | 1 | $66.95 | |
| 20 | 0621-989 | DECAL,REFLECTOR-AMBER | 1 | $15.11 | |
| 21 | 6606-421 | FOIL,INTAKE PLENUM-UPPER | 1 | $2.88 | |
| 22 | 5706-380 | PLENUM,INTAKE-LWR-REAR-W/FOIL | 1 | $70.95 | |
| 23 | 6606-422 | FOIL,INTAKE PLENUM-LOWER-TURBO | 1 | $5.51 | |
| 24 | 1623-023 | NUT,SPEED-#10-32 U TYPE | 1 | $1.50 | |
| 25 | 6606-392 | STRAP,HOLD-DOWN-RUBBER | 1 | $2.88 | |
| 26 | 2670-265 | FILTER,AIR (TURBO) | 1 | $45.95 | |
| 27 | 6606-365 | COVER,AIR FILTER | 1 | $29.95 |
