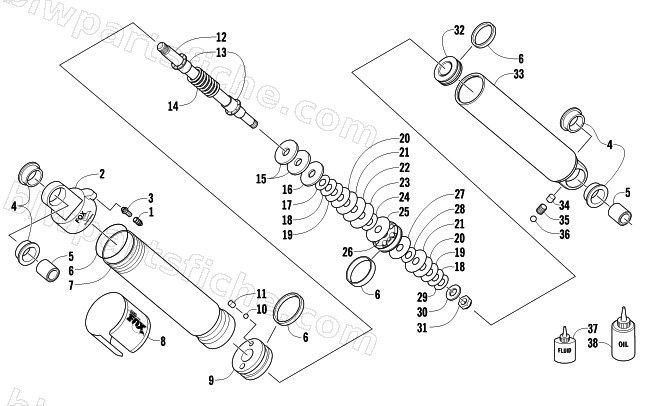

FRONT SUSPENSION SHOCK ABSORBER
2013 F 1100 SNO PRO LTD
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 2703-856 | SHOCK,SKI-FLOAT 2-18.30" | 1 | $788.95 | |
| 1 | 2603-327 | CAP,VALVE-AIR - (FOX) | 1 | $12.35 | |
| 2 | 3604-319 | END CAP,AIR SLEEVE-ASSY | 1 | $314.95 | |
| 3 | 2603-511 | VALVE,AIR-LOW TEMP (FOX) | 1 | $32.95 | |
| 4 | 1604-222 | BUSHING,REAR ARM SHOCK-.125" LIP | 1 | $17.87 | |
| 5 | 2604-223 | SLEEVE, .571 X .815 X .950TLG | 1 | $33.95 | |
| 6 | 2604-796 | KIT,REBUILD-SEAL/BEARING-FLOAT | 1 | $152.95 | |
| 7 | 2603-411 | SLEEVE,AIR-ASSY-8.915"-(FLOAT) | 1 | $332.95 | |
| 8 | 2603-905 | DECAL,6.50" X 4.75" FOX FLOAT 2 | 1 | $68.95 | |
| 9 | 2603-906 | BEARING ASSY,FLOAT - MAX AIR-NEG. SPRING | 1 | $223.95 | |
| 10 | 1604-315 | BALL, BLEED | 1 | $4.95 | |
| 11 | 1603-940 | SCREW-SET,8-32X.250 | 1 | $1.95 | |
| 12 | 2603-954 | SHAFT,SHOCK-.498 X 9.950 TLG | 1 | $31.95 | |
| 13 | 2603-522 | GUIDE,SPRING-1.15OD X .800 TLG | 1 | $89.95 | |
| 14 | 2603-656 | SPRING,NEG.2.500 TLGX0.830 ID X 160 LBS | 1 | $97.95 | |
| 15 | 0603-386 | BUMPER,INTERNAL | 1 | $26.95 | |
| 16 | 0603-540 | WASHER, TOP OUT-1.125OD X .378 ID X.093 | 1 | $16.49 | |
| 17 | 0603-878 | VALVE, SHOCK .700X.012(040-12-070) | 1 | $12.95 | |
| 18 | 0603-335 | VALVE, .800X.010(3/8ID) | 1 | $12.95 | |
| 19 | 0603-338 | VALVE, .900X.010(3/8ID) | 1 | $14.95 | |
| 20 | 0603-341 | VALVE,1.000X.010(3/8ID) | 1 | $6.95 | |
| 21 | 0603-882 | VALVE, SHOCK 1.100 X.012(3/8ID) | 1 | $12.95 | |
| 22 | 0603-347 | VALVE,1.250X.010(3/8ID) | 1 | $13.95 | |
| 23 | 0603-891 | VALVE, SHOCK 1.300 X.012 | 1 | $12.95 | |
| 24 | 0603-879 | VALVE, SHOCK .800 X.012(040-12-080) | 1 | $6.95 | |
| 25 | 0603-349 | VALVE,1.300X.008(3/8ID) | 1 | $13.95 | |
| 26 | 2603-990 | PISTON,HIGH FLOW-.093 ORIFICE | 1 | $36.95 | |
| 27 | 0603-343 | VALVE,1.100X.008(3/8ID) | 1 | $6.95 | |
| 28 | 0603-330 | VALVE, .700X .006 (3/8 ID) | 1 | $12.95 | |
| 29 | 2603-045 | VALVE,SHOCK- .700 DIA X .010 | 1 | $5.95 | |
| 30 | 0603-389 | WASHER,BACKUP | 1 | $12.95 | |
| 31 | 0603-301 | NUT,CAP-FOX SHOCK | 1 | $6.95 | |
| 32 | 2603-919 | PISTON,IFP-SHOCK-MAX VOL-1.459"-ASSY | 1 | $56.95 | |
| 33 | 2603-955 | BODY,FLOAT-1.459 BORE X 9.625 TLG | 1 | $259.95 | |
| 34 | 1604-428 | PLUG, RUBBER - VALVE | 1 | $13.73 | |
| 35 | 2603-338 | SCREW,SET-3/8-24 X .25" | 1 | $15.11 | |
| 36 | 2603-337 | BALL,AIR VALVE (.219 OD) - (FLOAT) | 1 | $7.16 | |
| 37 | 4639-012 | FLOAT FLUID,FOX RACING SHOX-8 OZ | 1 | $18.95 | |
| 38 | 5639-530 | SEMI-SYN SHOCK OIL-1 QUART | 1 | $26.95 |
