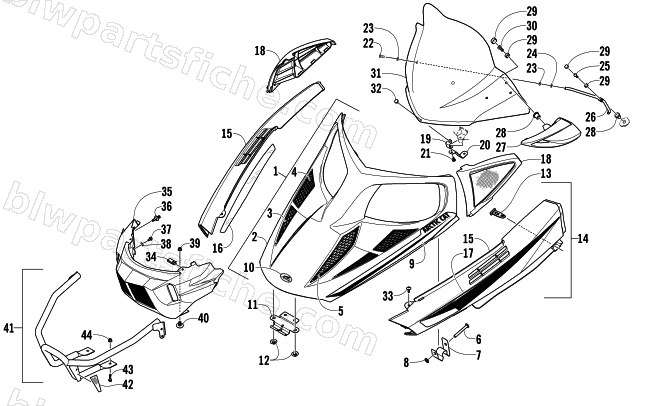

HOOD, WINDSHIELD, AND FRONT BUMPER ASSEMBLY
2013 BEARCAT Z1 XT
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3718-391 | LID,HOOD-BLUE PTD CLR W/DECALS | 1 | $350.95 | |
| 2 | 7901-188 | LID,HOOD-BLUE PTD CLR-MFG ASSY | 1 | $254.95 | |
| 3 | 4606-624 | VENT,HOOD-OUTER FRONT-RH-MOLD BLK | 1 | $20.63 | |
| 3 | 4606-625 | VENT,HOOD-OUTER FRONT-LH-MOLD BLK | 1 | $20.63 | |
| 4 | 4606-640 | VENT,HOOD-OUTER-REAR RH-MOLD BLK | 1 | $20.63 | |
| 4 | 4606-641 | VENT,HOOD-OUTER-REAR LH-MOLD BLK | 1 | $20.63 | |
| 5 | 4606-614 | VENT,HOOD LID-INNER-RH-MOLD BLK | 1 | $26.95 | |
| 5 | 4606-615 | VENT,HOOD LID-INNER-LH-MOLD BLK | 1 | $26.95 | |
| 6 | 1623-610 | PIN,RETAINING-HOOD | 1 | $22.01 | |
| 7 | 5706-084 | CLIP,HOLDDOWN-HOOD LID-RH-PTD BLK | 1 | $15.11 | |
| 7 | 5706-085 | CLIP,HOLDDOWN-HOOD LID-LH-PTD BLK | 1 | $15.11 | |
| 8 | 1623-409 | RETAINER,PUSHNUT-1/4 | 1 | $1.09 | |
| 9 | 9611-756 | DECAL,HOOD-RH-BLUE | 1 | $30.95 | |
| 9 | 9611-757 | DECAL,HOOD-LH-BLUE | 1 | $30.95 | |
| 10 | 9611-751 | DECAL,EMBLEM-CHROME | 1 | $42.95 | |
| 11 | 6606-027 | BRKT,LID HINGE-BCXT | 1 | $20.63 | |
| 12 | 1623-469 | NUT,STAMPED- 0.330 | 1 | $1.23 | |
| 13 | 4606-926 | STRAP,HOLDDOWN-STORAGE BOX LID | 1 | $4.68 | |
| 14 | 3718-392 | SPAR,FRONT-RH-BLK PTD CLR W/DECALS | 1 | $175.95 | |
| 14 | 3718-393 | SPAR,FRONT-LH-BLK PTD CLR W/DECALS | 1 | $175.95 | |
| 15 | 4706-950 | SPAR,FRONT-RH-BLK-PTD CLEAR | 1 | $200.95 | |
| 15 | 4706-951 | SPAR,FRONT-LH-BLK-PTD CLEAR | 1 | $200.95 | |
| 16 | 4606-934 | FOIL,RH SPAR-BOTTOM | 1 | $1.50 | |
| 17 | 9611-754 | DECAL,SPAR-RH-XT-BLUE | 1 | $88.95 | |
| 17 | 9611-755 | DECAL,SPAR-LH-XT-BLUE | 1 | $79.95 | |
| 18 | 4706-690 | BEZEL,INTAKE-RH-BLU PTD CLR-ASSY | 1 | $60.95 | |
| 18 | 4706-691 | BEZEL,INTAKE-LH-BLU PTD CLR-ASSY | 1 | $60.95 | |
| 19 | 4606-961 | BRKT,HOLDDOWN-WINDSHIELD | 1 | $17.87 | |
| 20 | 5606-277 | BRKT, WINDSHIELD | 1 | $30.95 | |
| 21 | 1623-129 | R/B 2623-166 | 1 | $0.35 | |
| 22 | 1623-902 | SCREW,MH-TSTRH-M8X1.25X20-Z&BLK-W/2510 | 1 | $5.78 | |
| 23 | 1623-837 | WASHER,RUBBER-8X19X3 | 1 | $9.10 | |
| 24 | 8050-242 | WASHER,FLAT- 5/16 X .625 X .063 Z&Y | 1 | $2.06 | |
| 25 | 0623-121 | SCREW,MACH-PHTRH #10-32X3/4 Z&Y | 1 | $4.82 | |
| 26 | 5706-073 | SUPPORT,WINDSHIELD-PTD BLK | 1 | $15.11 | |
| 27 | 6639-629 | KIT,MIRROR(SINGLE)'08-BLK | 1 | $46.95 | |
| 28 | 0623-845 | NUT, EXP,10-32 | 1 | $2.47 | |
| 29 | 0124-054 | SNAP CAP W/WASHER | 1 | $1.23 | |
| 30 | 0623-902 | SCREW, MACH-PHTRH-10-32X5/8-ZY | 1 | $0.95 | |
| 31 | 6606-263 | R/B 6606-278 | 1 | $282.95 | |
| 32 | 1623-677 | RIVET,PLASTIC - 6.0 MM DIA | 1 | $1.37 | |
| 33 | 0623-797 | SCREW,SELF TAP-TSTH 10-12X1/2 WO/GP | 1 | $0.45 | |
| 34 | 1623-030 | NUT,SPEED-#10B U TYPE | 1 | $0.95 | |
| 35 | 4706-686 | FACIA, FRT-BLK PTD CLR | 1 | $129.95 | |
| 36 | 0623-362 | RIVET,PLASTIC-REINSTALLABLE | 1 | $0.68 | |
| 37 | 0623-966 | SCREW,SELF TAP-HWH M6 X 12 Z (TRI LOB) | 1 | $1.09 | |
| 38 | 8053-242 | WASHER,LOCK-5/16 EXT TOOTH TYP A Z&Y | 1 | $0.12 | |
| 39 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 40 | 1623-775 | SCREW,SHOULDER TSTRH M6X1.0X25 Z&Y | 1 | $1.78 | |
| 41 | 4706-961 | BUMPER,FRONT W/REFLECTORS | 1 | $259.95 | |
| 42 | 9611-386 | DECAL,REFLECTOR-AMBER RH | 1 | $22.01 | |
| 42 | 9611-387 | DECAL,REFLECTOR-AMBER LH | 1 | $22.01 | |
| 43 | 8408-025 | SCREW,CAP-HFH M10X1.25X25 CL8.8 Z&Y | 1 | $3.16 | |
| 44 | 8427-002 | NUT,HEX FLG-NYL LOCK M10X1.25 CL8 Z&Y | 1 | $0.95 |
