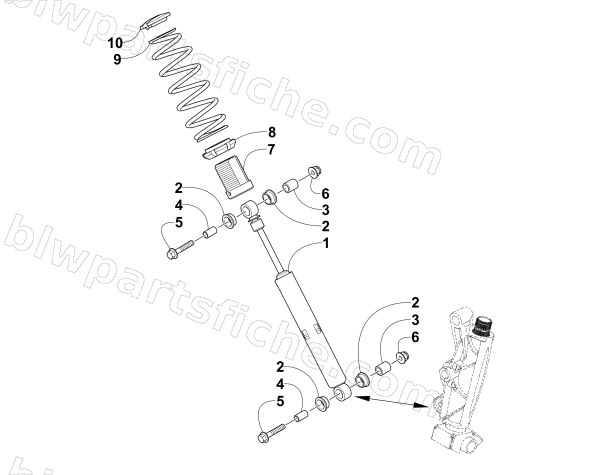

2013 Arctic Cat BEARCAT Z1 XT — FRONT SHOCK ABSORBER ASSEMBLY
2013 BEARCAT Z1 XT
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2603-836 | SHOCK,SKI - 16" GAB - W/ADJ- BCWT | 1 | $230.95 | |
| 2 | 1604-262 | BUSHING,SHOCK-.125 FLANGE | 1 | $3.02 | |
| 3 | 1604-397 | SLEEVE, EYELET - INNER - .950 | 1 | $3.99 | |
| 4 | 3604-109 | SLEEVE,SHOCK EYELET-10mm ID | 1 | $4.40 | |
| 5 | 8408-055 | SCREW,CAP-HFH M10X1.25X55 CL8.8 Z&Y | 1 | $3.16 | |
| 6 | 8427-002 | NUT,HEX FLG-NYL LOCK M10X1.25 CL8 Z&Y | 1 | $0.95 | |
| 7 | 0603-147 | SLEEVE,THREADED-SHOCK | 1 | $60.95 | |
| 8 | 0603-259 | NUT,RETAINER-SPRING | 1 | $5.65 | |
| 9 | 2703-754 | SPRING,COMPRESSION-140 LB-PTD WHT | 1 | $93.95 | |
| 10 | 1603-889 | RETAINER, SPRING | 1 | $12.35 |
