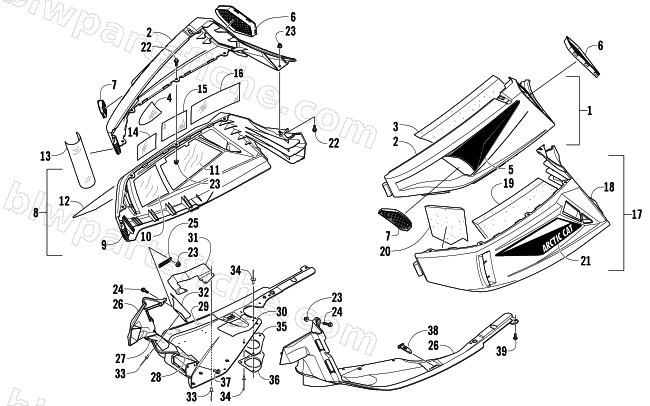

2013 Arctic Cat BEARCAT Z1 XT LTD — SKID PLATE AND SIDE PANEL ASSEMBLY
2013 BEARCAT Z1 XT LTD
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3718-800 | PANEL,SIDE-UPR-BLK-RH W/DECALS | 1 | $252.95 | |
| 1 | 3718-801 | PANEL,SIDE-UPR-BLK-LH W/DECALS | 1 | $252.95 | |
| 2 | 3718-384 | PANEL,SIDE-UPR-RH-MET BLK W/O DECALS | 1 | $225.95 | |
| 2 | 3718-385 | PANEL,SIDE-UPR-LH-MET BLK W/O DECALS | 1 | $225.95 | |
| 3 | 0617-562 | FOAM,UPR SIDE PANEL-RH | 1 | $46.95 | |
| 3 | 0617-563 | FOAM,UPR SIDE PANEL-LH | 1 | $16.49 | |
| 4 | 0637-318 | KIT,UPDATE-PROT FOIL | 1 | $2.95 | |
| 5 | 9611-778 | DECAL,SIDE PANEL-UPR-RH-BLK | 1 | $85.95 | |
| 5 | 9611-779 | DECAL,SIDE PANEL-UPR-LH-BLK | 1 | $82.95 | |
| 6 | 4606-650 | VENT,UPR PANEL-REAR RH-MOLD BLK | 1 | $26.95 | |
| 6 | 4606-651 | VENT,UPR PANEL-REAR LH-MOLD BLK | 1 | $26.95 | |
| 7 | 4606-662 | VENT,UPR PANEL-RH HONEYCOMB-MOLD BLK | 1 | $20.63 | |
| 7 | 4606-663 | VENT,UPR PANEL-LH HONEYCOMB-MOLD BLK | 1 | $20.63 | |
| 8 | 3718-798 | PANEL,SIDE-LWR-BLK-RH W/DECALS | 1 | $287.95 | |
| 9 | 2718-930 | PANEL,SIDE-LWR RH W/O DECALS-BLK | 1 | $291.95 | |
| 10 | 6606-212 | FOIL,PROTECTIVE-RH SIDE PANEL-LWR FRT | 1 | $2.75 | |
| 11 | 6606-214 | FOIL,PROTECTIVE-RH SIDE PANEL-LWR REAR | 1 | $5.09 | |
| 12 | 9611-780 | DECAL,SIDE PANEL-LWR-RH-BLK | 1 | $36.95 | |
| 13 | 6606-456 | FOIL,PROTECTIVE-178X115 | 1 | $2.75 | |
| 14 | 6606-219 | FOIL,PROTECTIVE-127X191 | 1 | $4.54 | |
| 15 | 6606-218 | FOIL,PROTECTIVE-102X152 | 1 | $3.44 | |
| 16 | 6606-220 | FOIL,PROTECTIVE-127X343 | 1 | $6.34 | |
| 17 | 3718-799 | PANEL,SIDE-LWR-BLK-LH W/DECALS | 1 | $287.95 | |
| 18 | 2718-349 | PANEL,SIDE-LWR LH W/O DECALS-BLK | 1 | $298.95 | |
| 19 | 0617-567 | FOAM,LWR SIDE PANEL- REAR LH (19mm THK) | 1 | $93.95 | |
| 20 | 0617-566 | FOAM,LWR SIDE PANEL-FRT LH(19mm THK) | 1 | $16.49 | |
| 21 | 9611-781 | DECAL,SIDE PANEL-LWR-LH-BLK | 1 | $38.95 | |
| 22 | 8408-620 | SCREW,CAP-HFH M6X1.0X20 CL8.8 Z&Y | 1 | $1.37 | |
| 23 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 24 | 8408-635 | SCREW,CAP-HFH M6X1.0X35 CL8.8 Z&Y | 1 | $0.68 | |
| 25 | 1623-984 | CLAMP,WIRE - 76.14MM LG W/6.25 HOLE | 1 | $6.20 | |
| 26 | 4706-772 | PLATE,SKID-BLK RH-ROUTED | 1 | $54.95 | |
| 26 | 4706-073 | PLATE, SKID-LH-BLK-ROUTED-F/C | 1 | $57.95 | |
| 27 | 4606-796 | FOIL,PROTECTIVE-RH SKID PLATE-UPR FRT | 1 | $1.64 | |
| 28 | 6606-453 | FOIL,PROTECTIVE-SKID PLATE-FRONT | 1 | $2.88 | |
| 29 | 4606-798 | FOIL,PROTECTIVE-RH SKID PLATE-OUTER | 1 | $2.47 | |
| 30 | 4606-797 | FOIL,PROTECTIVE-RH SKID PLATE-CENTER | 1 | $4.26 | |
| 31 | 6606-227 | SHIELD,HEAT-SKID PLATE-RH | 1 | $26.95 | |
| 32 | 6606-423 | SHIELD,HEAT-HINGE | 1 | $12.35 | |
| 33 | 8061-506 | RIVET,BLIND-LF SS54 BLACK | 1 | $0.95 | |
| 34 | 8061-708 | RIVET, BLIND-LF SS66 BLACK | 1 | $0.95 | |
| 35 | 2612-469 | SEAL,EXHAUST-OUTLET-4 STRK | 1 | $15.11 | |
| 36 | 1712-594 | SHIELD,HEAT-EXHAUST OUTLET-PTD | 1 | $30.95 | |
| 37 | 0623-966 | SCREW,SELF TAP-HWH M6 X 12 Z (TRI LOB) | 1 | $1.09 | |
| 38 | 4606-926 | STRAP,HOLDDOWN-STORAGE BOX LID | 1 | $4.68 | |
| 39 | 0423-538 | SCREW,TAPTITE-TSPNH M6 X 1 X 16 Z&B | 1 | $0.68 |
