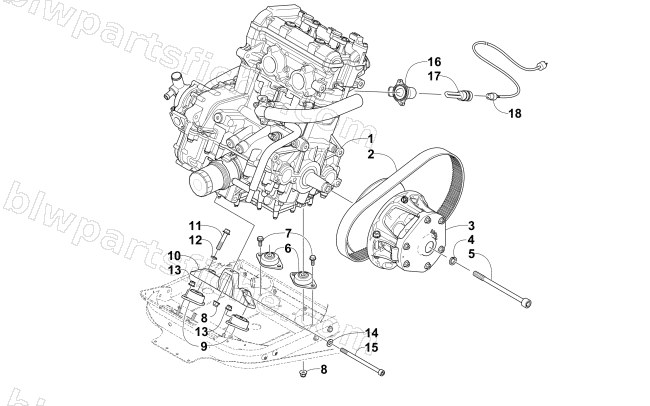

ENGINE AND RELATED PARTS
2013 BEARCAT Z1 XT GS
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0762-583 | LONG BLOCK,ENGINE-1100NA | 1 | $5,290.95 | |
| 2 | 0627-073 | BELT,DRIVE- CR-8E PBO 1.448"W-43.547"OC | 1 | $235.95 | |
| 3 | 0746-435 | CLUTCH,DRIVE-UNCAL-8.25 33MM/S | 1 | $696.95 | |
| 4 | 1623-649 | WASHER,CLUTCH BOLT | 1 | $5.65 | |
| 5 | 1623-620 | BOLT,DRIVE CLUTCH - M12 X 1.25 X 176 | 1 | $53.95 | |
| 6 | 0608-590 | MOUNT, ENGINE-REAR-ADJUSTABLE | 1 | $65.95 | |
| 7 | 1623-437 | SCREW,CAP-HFH M8 X1.25 X 20 TRILOBE Z&Y | 1 | $2.75 | |
| 8 | 8427-002 | NUT,HEX FLG-NYL LOCK M10X1.25 CL8 Z&Y | 1 | $0.95 | |
| 9 | 0608-457 | MOUNT, ENGINE-FRT | 1 | $49.95 | |
| 10 | 0708-552 | BRKT,ENGINE MOUNT-MACH-ADJUSTABLE | 1 | $69.95 | |
| 11 | 8408-020 | SCREW,CAP-HFH M10X1.25X20 CL8.8 Z&Y | 1 | $3.16 | |
| 12 | 8451-182 | WASHER,SPRING LOCK-M10 Z&Y | 1 | $0.12 | |
| 13 | 8427-802 | NUT,HEX FLG-NYL LOCK M8X1.25 CL8 Z&Y | 1 | $0.54 | |
| 14 | 8450-157 | WASHER,FLAT M10X20X2.30 Z&Y | 1 | $3.16 | |
| 15 | 1623-925 | SCREW,CAP-HSH M10X1.25- Z&Y MPT | 1 | $27.95 | |
| 16 | 0613-012 | FITTING,WATER INLET-MACH | 1 | $24.77 | |
| 17 | 0609-877 | ELEMENT,HEATING-530 WATT-240V-OS | 1 | $206.95 | |
| 17 | 0609-894 | ELEMENT,HEATING-US | 1 | $82.95 | |
| 18 | 0709-081 | CORD,PLUG-IN W/DECAL | 1 | $227.95 | |
| 18 | 0709-082 | CORD,ENGINE HEATER W/DECAL-US | 1 | $45.95 |
