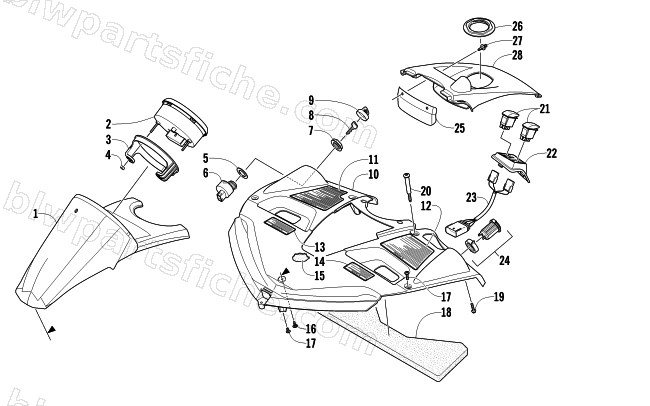

2013 Arctic Cat BEARCAT Z1 XT GS — CONSOLE ASSEMBLY
2013 BEARCAT Z1 XT GS
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 4706-836 | HOUSING,SPEEDO/TACH-ROUTED | 1 | $65.95 | |
| 2 | 0620-359 | SPEEDO/TACH-STANDARD-CALIBRATED (Z1 XT) | 1 | $524.95 | |
| 3 | 0620-322 | BRKT,RETAINER-SPEEDO/TACH | 1 | $9.59 | |
| 4 | 0423-493 | NUT,HEX-M4-.7 W/STAR WSR | 1 | $0.26 | |
| 5 | 0630-264 | WASHER,SPACER-IGNITION SWITCH | 1 | $0.95 | |
| 6 | 0609-911 | SWITCH,IGNITION-W/KEY | 1 | $66.95 | |
| 7 | 0430-050 | NUT,FLANGE-KEYSWITCH | 1 | $1.92 | |
| 8 | 0430-042 | KEY,IGNITION SERIES-Y (LH BLANK) | 1 | $5.92 | |
| 8 | 0430-043 | KEY,IGNITION SERIES-Z (RH BLANK) | 1 | $11.95 | |
| 9 | 0430-054 | COVER,KEY | 1 | $15.11 | |
| 10 | 2718-816 | BASE, CONSOLE-BLK W/DECALS W/SW | 1 | $142.95 | |
| 11 | 8611-848 | DECAL, WARNING-FRENCH | 1 | $16.49 | |
| 12 | 8611-849 | DECAL, WARNING-ENGLISH | 1 | $16.49 | |
| 13 | 7611-574 | DECAL,CAUTION-FRENCH | 1 | $15.11 | |
| 14 | 7611-575 | DECAL,CAUTION-ENGLISH | 1 | $15.11 | |
| 15 | 0617-558 | FOAM,CONSOLE-FRT | 1 | $30.95 | |
| 16 | 1623-129 | R/B 2623-166 | 1 | $0.35 | |
| 17 | 1623-618 | SCREW,PT THD-TSPNH K60-2.69X25MM RIE BLK | 1 | $6.06 | |
| 18 | 0617-559 | FOAM,CONSOLE-REAR | 1 | $30.95 | |
| 19 | 0623-785 | SCREW,SELF TAP-HWH #10-16 X 1 TYPE B Z&Y | 1 | $0.68 | |
| 20 | 1623-669 | SCREW,SHOULDER - TSTRH M6X 1.0 X 80 MM | 1 | $4.26 | |
| 21 | 0609-912 | SWITCH, ACTUATOR | 1 | $57.95 | |
| 22 | 5606-236 | HOUSING, SWITCH/CONSOLE-TOUR | 1 | $13.73 | |
| 23 | 1686-647 | HARNESS,GROOMER SWITCH CONSOLE | 1 | $63.95 | |
| 24 | 0641-897 | OUTLET, ACCESSORY - 12V DC | 1 | $23.39 | |
| 25 | 4706-363 | PLATE,BLOCK-HANDLEBAR CLOSE OFF-PTD | 1 | $19.25 | |
| 26 | 6606-011 | NUT,RETAINER-FUEL NECK | 1 | $15.11 | |
| 27 | 0623-362 | RIVET,PLASTIC-REINSTALLABLE | 1 | $0.68 | |
| 28 | 5606-365 | CLOSE OFF,HANDLEBAR-BCWT-MOLDED BLK | 1 | $27.95 |
