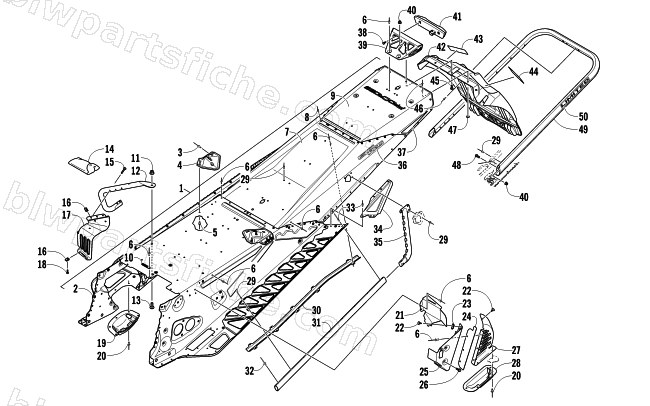

2012 Arctic Cat XF 800 SNO PRO LTD — TUNNEL, REAR BUMPER, AND SNOWFLAP ASSEMBLY
2012 XF 800 SNO PRO LTD
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 1707-627 | CHASSIS-141" 2 STRK-ASSY-PTD PC PRL WHT | 1 | $2,581.95 | |
| 1 | 1707-718 | TUNNEL,XF-141-S/P ASSY-PTD PC WHT | 1 | $1,406.95 | |
| 2 | 1707-719 | TUNNEL,FRONT-ASSY-PTD PC WHT | 1 | $700.95 | |
| 3 | 1623-206 | RIVET,3/16 HUCK-M9 | 1 | $2.06 | |
| 4 | 1707-704 | BRKT,SPAR SUPPORT-RH-PTD PC PRL WHT | 1 | $30.95 | |
| 4 | 1707-705 | BRKT,SPAR SUPPORT-LH-PTD PC PRL WHT | 1 | $38.95 | |
| 5 | 1623-257 | RIVET,3/16 HUCK-M5 | 1 | $2.06 | |
| 6 | 8060-682 | RIVET,BLIND-DH SS62 ZINC | 1 | $0.12 | |
| 7 | 1707-706 | TUNNEL,REAR-HI PERF-PTD WHT | 1 | $169.95 | |
| 8 | 8060-484 | RIVET, BLIND-DH SS53 ZINC | 1 | $0.40 | |
| 9 | 1707-720 | END CAP,TUNNEL-PTD PC PRL WHT | 1 | $42.95 | |
| 10 | 1623-984 | CLAMP,WIRE - 76.14MM LG W/6.25 HOLE | 1 | $6.20 | |
| 11 | 8427-802 | NUT,HEX FLG-NYL LOCK M8X1.25 CL8 Z&Y | 1 | $0.54 | |
| 12 | 1707-552 | HOOK,TOE-RH PTD PC PRL WHT | 1 | $38.95 | |
| 12 | 1707-553 | HOOK,TOE-LH PTD PC PRL WHT | 1 | $38.95 | |
| 13 | 8476-820 | SCREW,MACH-TSTRH M8X1.25X20 Z&Y | 1 | $0.95 | |
| 14 | 0744-063 | KIT,TOOL BAG-2 STROKE-ASSY | 1 | $68.95 | |
| 15 | 8468-536 | SCREW,MACH-TSPNH M5X0.8X35 CL8.8 W/2353 | 1 | $1.78 | |
| 16 | 1623-637 | CLIP,U-NUT (M5) | 1 | $2.47 | |
| 17 | 1707-554 | TOE STOP,RH - FORMED-PTD PC PRL WHT | 1 | $29.95 | |
| 17 | 1707-555 | TOE STOP,LH - FORMED-PTD PC PRL WHT | 1 | $29.95 | |
| 18 | 8475-512 | SCREW,MACH-TSTRH M5X0.8X12 Z&CLR | 1 | $0.95 | |
| 19 | 1607-109 | PROTECTOR,CHAIN CASE | 1 | $5.51 | |
| 20 | 8061-708 | RIVET, BLIND-LF SS66 BLACK | 1 | $0.95 | |
| 21 | 2602-436 | MOUNT,CLUTCH GUARD | 1 | $46.95 | |
| 22 | 1623-129 | R/B 2623-166 | 1 | $0.35 | |
| 23 | 1623-052 | NUT,U | 1 | $0.95 | |
| 24 | 1707-638 | GUARD,TOE-PTD PC PRL WHT | 1 | $12.35 | |
| 25 | 1607-118 | COVER,SHIELD-BRAKE CALIPER | 1 | $34.95 | |
| 26 | 8408-613 | SCREW,CAP-HFH M6X1.0X12 CL8.8 Z&Y W/2353 | 1 | $1.50 | |
| 27 | 1707-562 | COVER,SHIELD-BRAKE DISC-PTD PC PRL WHT | 1 | $73.95 | |
| 28 | 0607-351 | PROTECTOR,BRAKE DISC-BOTTOM | 1 | $12.35 | |
| 29 | 8060-686 | RIVET,BLIND-DH SS64 ZINC | 1 | $0.40 | |
| 30 | 0630-275 | PROTECTOR,TAILLIGHT HARNESS-141" | 1 | $17.87 | |
| 31 | 1707-709 | EDGE,RUNNING BOARD-PTD PC PRL WHT | 1 | $54.95 | |
| 32 | 1623-130 | RIVET,3/16 HUCK-M4 | 1 | $1.64 | |
| 33 | 1623-241 | RIVET,3/16 HUCK-M6 | 1 | $1.92 | |
| 34 | 1707-906 | GUSSET,RUNNING BOARD-RH-PTD WHT | 1 | $27.95 | |
| 34 | 1707-907 | GUSSET,RUNNING BOARD-LH-PTD WHT | 1 | $27.95 | |
| 35 | 1707-712 | GUSSET,TUNNEL-RH-PTD PC PRL WHT | 1 | $30.95 | |
| 35 | 1707-713 | GUSSET,TUNNEL-LH-PTD PC PRL WHT | 1 | $29.95 | |
| 36 | 9611-613 | DECAL,SNO PRO (LTD) | 1 | $9.59 | |
| 37 | 9611-724 | DECAL,REFLECTOR-RED-RH | 1 | $24.95 | |
| 37 | 9611-725 | DECAL,REFLECTOR-RED-LH | 1 | $8.95 | |
| 38 | 8470-512 | SCREW,MACH-TSPNH M5X.8X12 CL8.8 Z&Y | 1 | $0.95 | |
| 39 | 0730-157 | HOUSING,TAILLIGHT-PTD PC PRL WHT | 1 | $26.95 | |
| 40 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 41 | 0609-898 | TAILLIGHT,RED | 1 | $66.95 | |
| 42 | 6606-123 | FLAP, SNOW-F/XF-BLK | 1 | $85.95 | |
| 43 | 5611-852 | DECAL,WARNING-TOWING/TRACK-FRENCH | 1 | $2.47 | |
| 44 | 5611-853 | DECAL,WARNING-TOWING/TRACK-ENGLISH | 1 | $2.47 | |
| 45 | 8468-616 | SCREW,MACH-TSPNH M6X1.0X16 CL8.8 BLK | 1 | $0.68 | |
| 46 | 8061-686 | RIVET,BLIND-LF SS64 ZINC | 1 | $0.95 | |
| 47 | 0123-802 | WASHER,FLAT .194X.50X.048-Z&Y | 1 | $0.12 | |
| 48 | 8476-620 | SCREW,MACH-TSTRH M6X1.0X20 Z&Y | 1 | $0.40 | |
| 49 | 1707-548 | BUMPER,REAR-141" PTD PC PRL WHT | 1 | $224.95 | |
| 50 | 9611-626 | DECAL,BUMPER-"LIMITED" | 1 | $6.75 |
