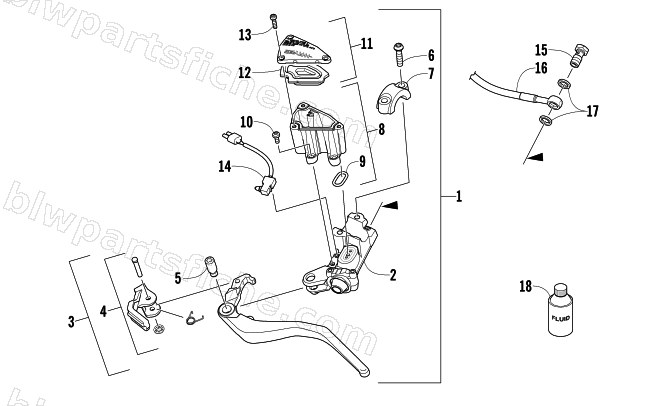

2012 Arctic Cat XF 1100 TURBO SNO PRO — HYDRAULIC BRAKE CONTROL ASSEMBLY
2012 XF 1100 TURBO SNO PRO
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2602-344 | CYLINDER,MASTER | 1 | $275.95 | |
| 2 | 2602-426 | PISTON,SUB ASSY-W/RESERVOIR BODY | 1 | $326.95 | |
| 3 | 2602-427 | LEVER & PARK LEVER-SUB ASSY | 1 | $131.95 | |
| 5 | 2602-431 | PIN,PIVOT | 1 | $12.95 | |
| 6 | 1602-936 | CLAMP SCREWS-BRAKE | 1 | $19.25 | |
| 7 | 0502-869 | CLAMP(BLACK) | 1 | $53.95 | |
| 8 | 2602-433 | RESERVOIR-W/MOUNT SCREWS | 1 | $49.95 | |
| 9 | 2602-518 | O-RING,RESERVIOR | 1 | $3.30 | |
| 10 | 2602-519 | SCREW,SELF-TAPPING-RESERVIOR | 1 | $1.78 | |
| 11 | 2602-429 | RESERVOIR COVER-SUB ASSY | 1 | $32.95 | |
| 12 | 2602-520 | GASKET,RESERVIOR COVER | 1 | $8.21 | |
| 13 | 2602-430 | KIT,SCREWS-RESERVOIR COVER | 1 | $5.37 | |
| 14 | 2602-432 | SWITCH,STOPLIGHT | 1 | $88.95 | |
| 15 | 0423-413 | BOLT,BANJO FITTING-20mm | 1 | $4.13 | |
| 16 | 2602-424 | R/B 3602-099 | 1 | $104.95 | |
| 17 | 0423-178 | WASHER,CRUSH | 1 | $1.78 | |
| 18 | 5639-848 | DOT 4 BRAKE FLUID - 12 OZ | 1 | $13.73 |
