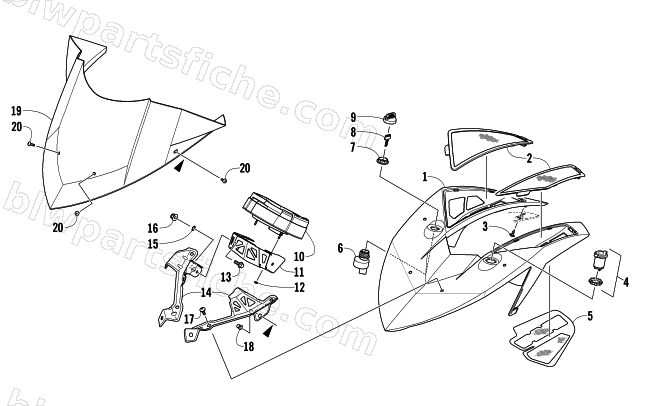

2012 Arctic Cat XF 1100 TURBO SNO PRO HIGH COUNTRY — WINDSHIELD AND INSTRUMENTS ASSEMBLIES
2012 XF 1100 TURBO SNO PRO HIGH COUNTRY
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 5706-236 | COWL,HEADLIGHT-4STRK BLK-ROUTED | 1 | $136.95 | |
| 2 | 0608-736 | SCREEN,INTAKE-INJ MOLD-RH | 1 | $19.25 | |
| 2 | 0608-737 | SCREEN,INTAKE-INJ MOLD-LH | 1 | $19.25 | |
| 3 | 1623-129 | R/B 2623-166 | 1 | $0.35 | |
| 4 | 0641-897 | OUTLET, ACCESSORY - 12V DC | 1 | $23.39 | |
| 5 | 0608-688 | SCREEN,AIR INTAKE-RH | 1 | $27.95 | |
| 5 | 0608-689 | SCREEN,AIR INTAKE-LH | 1 | $27.95 | |
| 6 | 0609-911 | SWITCH,IGNITION-W/KEY | 1 | $66.95 | |
| 7 | 0430-050 | NUT,FLANGE-KEYSWITCH | 1 | $1.92 | |
| 8 | 0430-042 | KEY,IGNITION SERIES-Y (LH BLANK) | 1 | $5.92 | |
| 8 | 0430-043 | KEY,IGNITION SERIES-Z (RH BLANK) | 1 | $11.95 | |
| 9 | 0430-054 | COVER,KEY | 1 | $15.11 | |
| 10 | 0620-368 | SPEEDO,LCD-4 STROKE MTN/CROSS CALIB-DLX | 1 | $752.95 | |
| 11 | 6606-288 | BRKT,GAUGE-CENTER | 1 | $26.95 | |
| 12 | 0423-493 | NUT,HEX-M4-.7 W/STAR WSR | 1 | $0.26 | |
| 13 | 8410-616 | SCREW,CAP-HFH M6X1.0X16 CL8.8 RIE BLK | 1 | $1.37 | |
| 14 | 6606-130 | BRKT,GAUGE-RH | 1 | $20.63 | |
| 14 | 6606-131 | BRKT,GAUGE-LH | 1 | $11.79 | |
| 15 | 8053-212 | WASHER,LOCK-1/4 EXT TOOTH TYP A Z&Y | 1 | $0.12 | |
| 16 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 17 | 0423-355 | SCREW, SHOULDER-M6-1.0 X 18-BLK | 1 | $0.95 | |
| 18 | 1623-764 | NUT EXPANSION-M5-0.8 | 1 | $5.45 | |
| 19 | 6606-376 | WINDSHIELD,LOW-BLACK | 1 | $129.95 | |
| 20 | 8477-516 | SCREW,MACH-TSTRH M5X0.8X16 Z&BLK | 1 | $0.68 |
