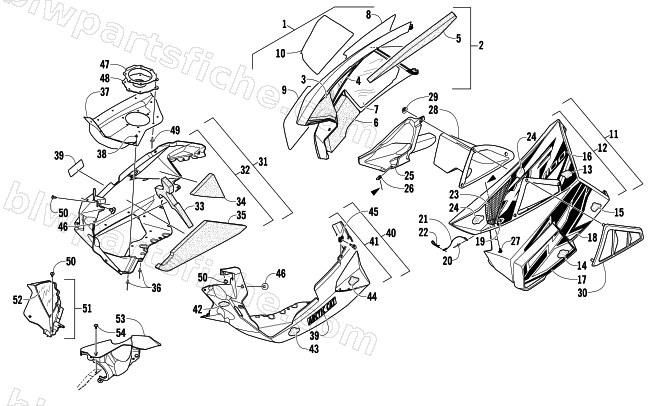

2012 Arctic Cat XF 1100 TURBO SNO PRO HIGH COUNTRY — SKID PLATE AND SIDE PANEL ASSEMBLY
2012 XF 1100 TURBO SNO PRO HIGH COUNTRY
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3718-326 | PANEL,SIDE-RH W/DECALS(TURBO XF SP BLK) | 1 | $313.95 | |
| 2 | 3718-312 | PANEL,SIDE-RH WITH FOAM-BLK (4 STROKE) | 1 | $259.95 | |
| 3 | 0617-626 | FOAM,UPPER SIDE PANEL-FRT-RH | 1 | $4.26 | |
| 4 | 6606-414 | FOIL,PROTECTIVE-MIDDLE SIDE PANEL-RH | 1 | $1.92 | |
| 5 | 0617-628 | FOAM,UPPER SIDE PANEL-REAR-RH | 1 | $37.95 | |
| 6 | 0617-632 | FOAM,LWR SIDE PANEL-FRT-RH | 1 | $22.01 | |
| 7 | 6606-416 | FOIL,PROTECTIVE-LWR SIDE PANEL-REAR-RH | 1 | $3.57 | |
| 8 | 9611-694 | DECAL,SIDE PNL-UPR RH-BLK-SP (XFTURBO) | 1 | $74.95 | |
| 9 | 9611-698 | DECAL,SIDE PANEL-FWD-RH-BLK-SP | 1 | $26.95 | |
| 10 | 9611-696 | DECAL,SIDE PANEL-LWR-RH-BLK-SP | 1 | $126.95 | |
| 11 | 3718-327 | PANEL,SIDE-LH W/DECALS(TURBO XF SP BLK) | 1 | $323.95 | |
| 12 | 4718-105 | PANEL,SIDE-LH-W/FOAM-BLK (TURBO) | 1 | $259.95 | |
| 13 | 0617-669 | FOAM,UPPER SIDE PANEL-REAR LH-4 STRK | 1 | $12.35 | |
| 14 | 0617-633 | FOAM,LWR SIDE PANEL-FRT-LH | 1 | $22.01 | |
| 15 | 0617-635 | FOAM,LWR SIDE PANEL-REAR-LH | 1 | $12.35 | |
| 16 | 9611-695 | DECAL,SIDE PNL-UPR LH-BLK-SP (XFTURBO) | 1 | $71.95 | |
| 17 | 9611-699 | DECAL,SIDE PANEL-FWD-LH-BLK-SP | 1 | $27.95 | |
| 18 | 9611-697 | DECAL,SIDE PANEL-LWR-LH-BLK-SP | 1 | $126.95 | |
| 19 | 8050-127 | WASHER,FLAT- #8 X .375 X .049 Z&Y | 1 | $1.37 | |
| 20 | 8060-486 | RIVET, BLIND-DH SS54 ZINC | 1 | $0.40 | |
| 21 | 0607-447 | CABLE,5"-HAIRPIN | 1 | $5.37 | |
| 22 | 0605-283 | HAIRPIN,COTTER | 1 | $1.23 | |
| 23 | 5706-531 | SCREEN,SIDE PANEL-UPR LH-PTD BLK | 1 | $20.63 | |
| 24 | 0619-206 | TAPE,ALUM FOIL - 6" X 30 FT | 1 | $7.77 | |
| 25 | 2602-457 | DUCT,BELT COOLING-4 STRK | 1 | $46.95 | |
| 26 | 1623-030 | NUT,SPEED-#10B U TYPE | 1 | $0.95 | |
| 27 | 0623-797 | SCREW,SELF TAP-TSTH 10-12X1/2 WO/GP | 1 | $0.45 | |
| 28 | 0708-596 | DUCT,HEAT-TURBO-ROUTED | 1 | $62.95 | |
| 29 | 1623-469 | NUT,STAMPED- 0.330 | 1 | $1.23 | |
| 30 | 0608-648 | COVER,DUCT-HEAT-TURBO | 1 | $16.49 | |
| 31 | 3718-236 | PLATE,SKID-REAR RH W/DECAL | 1 | $333.95 | |
| 32 | 3718-234 | PLATE,SKID-REAR RH WITH FOAM | 1 | $360.95 | |
| 33 | 0617-636 | FOAM,SKID PLATE-FRT-RH | 1 | $37.95 | |
| 34 | 0617-640 | FOAM,SKID PLATE-REAR-RH | 1 | $3.57 | |
| 35 | 0617-638 | FOAM,SKID PLATE-MIDDLE-RH | 1 | $43.95 | |
| 36 | 8061-708 | RIVET, BLIND-LF SS66 BLACK | 1 | $0.95 | |
| 37 | 1712-722 | DEFLECTOR,HEAT-PTD PWD CT BLK | 1 | $161.95 | |
| 38 | 0123-802 | WASHER,FLAT .194X.50X.048-Z&Y | 1 | $0.12 | |
| 39 | 9611-517 | DECAL,SKID PLATE-ARCTIC CAT | 1 | $10.97 | |
| 40 | 3718-237 | R/B 3718-235 | 1 | $117.95 | |
| 41 | 3718-235 | PLATE,SKID-REAR LH WITH FOAM | 1 | $110.95 | |
| 42 | 0617-637 | FOAM,SKID PLATE-FRT-LH | 1 | $16.49 | |
| 43 | 0617-639 | FOAM,SKID PLATE-MIDDLE-LH | 1 | $16.49 | |
| 44 | 0617-641 | FOAM,SKID PLATE-REAR-LH | 1 | $3.99 | |
| 45 | 1623-748 | CLIP, RECEPTACLE-1/4 TURN STUD | 1 | $5.65 | |
| 46 | 5606-639 | R/B 6606-592 | 1 | $18.95 | |
| 47 | 2612-685 | PLATE,EXHAUST-OUTLET | 1 | $58.95 | |
| 48 | 2612-669 | SEAL,EXHAUST OUTLET-4 STRK | 1 | $19.25 | |
| 49 | 8060-508 | RIVET,BLIND-DH SS56 BLK | 1 | $0.26 | |
| 50 | 1623-129 | R/B 2623-166 | 1 | $0.35 | |
| 51 | 3718-302 | PANEL,FILLER W/FOIL-RH | 1 | $19.25 | |
| 53 | 6606-351 | PANEL,FILLER-LH-TURBO-BLK | 1 | $67.95 | |
| 54 | 0623-784 | R/B 2623-163 | 1 | $0.35 |
