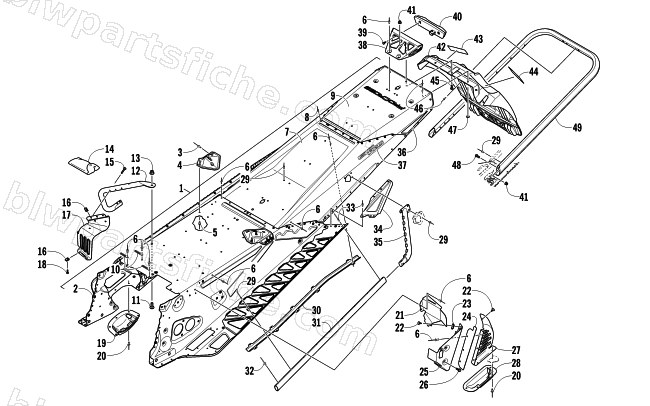

2012 Arctic Cat XF 1100 SNO PRO — TUNNEL, REAR BUMPER, AND SNOWFLAP ASSEMBLY
2012 XF 1100 SNO PRO
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 1707-449 | CHASSIS-141" 4 STRK-ASSY | 1 | $2,581.95 | |
| 1 | 1707-716 | TUNNEL,XF-141-S/P ASSY | 1 | $1,433.95 | |
| 2 | 1707-519 | CHASSIS,MC-SPR ASSY | 1 | $718.95 | |
| 3 | 1623-206 | RIVET,3/16 HUCK-M9 | 1 | $2.06 | |
| 4 | 1707-644 | BRKT,SPAR SUPPORT-RH-MACH | 1 | $27.95 | |
| 4 | 1707-645 | BRKT,SPAR SUPPORT-LH-MACH | 1 | $27.95 | |
| 5 | 1623-257 | RIVET,3/16 HUCK-M5 | 1 | $2.06 | |
| 6 | 8060-682 | RIVET,BLIND-DH SS62 ZINC | 1 | $0.12 | |
| 7 | 0607-475 | R/B 1607-223 | 1 | $188.95 | |
| 8 | 8060-484 | RIVET, BLIND-DH SS53 ZINC | 1 | $0.40 | |
| 9 | 0607-513 | TUNNEL,CLOSEOFF-141" | 1 | $77.95 | |
| 10 | 1623-984 | CLAMP,WIRE - 76.14MM LG W/6.25 HOLE | 1 | $6.20 | |
| 11 | 8476-820 | SCREW,MACH-TSTRH M8X1.25X20 Z&Y | 1 | $0.95 | |
| 12 | 1707-454 | HOOK,TOE-RH PTD BLK | 1 | $65.95 | |
| 12 | 1707-455 | HOOK,TOE-LH PTD BLK | 1 | $65.95 | |
| 13 | 8427-802 | NUT,HEX FLG-NYL LOCK M8X1.25 CL8 Z&Y | 1 | $0.54 | |
| 14 | 0744-064 | KIT,TOOL BAG-4 STROKE-ASSY | 1 | $67.95 | |
| 15 | 8468-536 | SCREW,MACH-TSPNH M5X0.8X35 CL8.8 W/2353 | 1 | $1.78 | |
| 16 | 1623-637 | CLIP,U-NUT (M5) | 1 | $2.47 | |
| 17 | 0607-996 | TOE STOP,RH - FORMED | 1 | $24.77 | |
| 17 | 0607-997 | TOE STOP,LH - FORMED | 1 | $24.77 | |
| 18 | 8475-512 | SCREW,MACH-TSTRH M5X0.8X12 Z&CLR | 1 | $0.95 | |
| 19 | 1607-109 | PROTECTOR,CHAIN CASE | 1 | $5.51 | |
| 20 | 8061-708 | RIVET, BLIND-LF SS66 BLACK | 1 | $0.95 | |
| 21 | 2602-436 | MOUNT,CLUTCH GUARD | 1 | $46.95 | |
| 22 | 1623-129 | R/B 2623-166 | 1 | $0.35 | |
| 23 | 1623-052 | NUT,U | 1 | $0.95 | |
| 24 | 1607-176 | GUARD,TOE | 1 | $5.51 | |
| 25 | 1607-118 | COVER,SHIELD-BRAKE CALIPER | 1 | $34.95 | |
| 26 | 8408-613 | SCREW,CAP-HFH M6X1.0X12 CL8.8 Z&Y W/2353 | 1 | $1.50 | |
| 27 | 0607-520 | COVER,SHIELD-BRAKE DISC | 1 | $37.95 | |
| 28 | 0607-351 | PROTECTOR,BRAKE DISC-BOTTOM | 1 | $12.35 | |
| 29 | 8060-686 | RIVET,BLIND-DH SS64 ZINC | 1 | $0.40 | |
| 30 | 0630-275 | PROTECTOR,TAILLIGHT HARNESS-141" | 1 | $17.87 | |
| 31 | 1607-092 | EDGE,RUNNING BOARD-MACH | 1 | $57.95 | |
| 32 | 1623-130 | RIVET,3/16 HUCK-M4 | 1 | $1.64 | |
| 33 | 1623-241 | RIVET,3/16 HUCK-M6 | 1 | $1.92 | |
| 34 | 1607-162 | GUSSET,RUNNING BOARD-RH | 1 | $17.87 | |
| 34 | 1607-163 | GUSSET,RUNNING BOARD-LH | 1 | $17.87 | |
| 35 | 1607-040 | GUSSET,TUNNEL-RH | 1 | $20.63 | |
| 35 | 1607-041 | GUSSET,TUNNEL-LH | 1 | $20.63 | |
| 36 | 9611-724 | DECAL,REFLECTOR-RED-RH | 1 | $24.95 | |
| 36 | 9611-725 | DECAL,REFLECTOR-RED-LH | 1 | $8.95 | |
| 37 | 9611-591 | DECAL,TUNNEL-SNO PRO-BLK | 1 | $12.35 | |
| 38 | 0630-278 | HOUSING,TAILLIGHT | 1 | $54.95 | |
| 39 | 8470-512 | SCREW,MACH-TSPNH M5X.8X12 CL8.8 Z&Y | 1 | $0.95 | |
| 40 | 0609-898 | TAILLIGHT,RED | 1 | $66.95 | |
| 41 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 42 | 6606-123 | FLAP, SNOW-F/XF-BLK | 1 | $85.95 | |
| 43 | 5611-852 | DECAL,WARNING-TOWING/TRACK-FRENCH | 1 | $2.47 | |
| 44 | 5611-853 | DECAL,WARNING-TOWING/TRACK-ENGLISH | 1 | $2.47 | |
| 45 | 8468-616 | SCREW,MACH-TSPNH M6X1.0X16 CL8.8 BLK | 1 | $0.68 | |
| 46 | 8061-686 | RIVET,BLIND-LF SS64 ZINC | 1 | $0.95 | |
| 47 | 0123-802 | WASHER,FLAT .194X.50X.048-Z&Y | 1 | $0.12 | |
| 48 | 8476-620 | SCREW,MACH-TSTRH M6X1.0X20 Z&Y | 1 | $0.40 | |
| 49 | 1607-064 | BUMPER,REAR-141"-FORMED | 1 | $88.95 |
