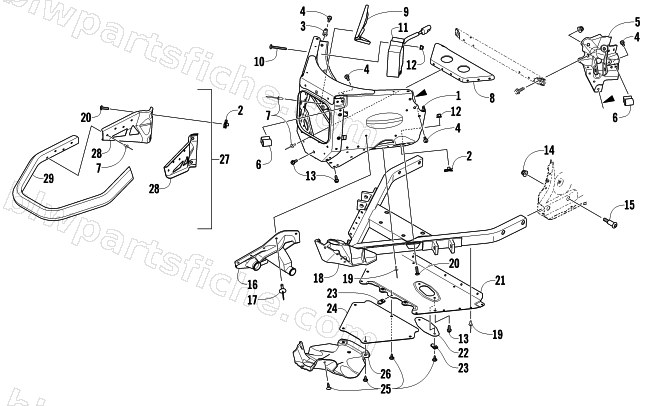

2012 Arctic Cat XF 1100 SNO PRO ANNIVERSARY — FRONT BUMPER AND FRAME ASSEMBLY
2012 XF 1100 SNO PRO ANNIVERSARY
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2707-181 | KIT,FRT PANEL-NA/800 ASSY | 1 | $544.95 | |
| 2 | 0423-577 | CLIP,U-NUT M6 | 1 | $0.40 | |
| 3 | 2612-707 | TAB,RESONATOR MTG | 1 | $3.02 | |
| 4 | 0423-538 | SCREW,TAPTITE-TSPNH M6 X 1 X 16 Z&B | 1 | $0.68 | |
| 5 | 1707-668 | HOUSING,SHOCK MOUNT-UPR RH-PTD BLK | 1 | $101.95 | |
| 5 | 1707-669 | HOUSING,SHOCK MOUNT-UPR LH-PTD BLK | 1 | $101.95 | |
| 6 | 1607-233 | BRKT,MTG-UPPER A-ARM-M6 X 1 THDS | 1 | $15.11 | |
| 7 | 8060-706 | RIVET,BLIND-DH SS64 BLK | 1 | $0.40 | |
| 8 | 2707-496 | KIT,STEERING MTG | 1 | $45.95 | |
| 9 | 0607-991 | BRKT,MTG-STEERING STOP | 1 | $16.49 | |
| 10 | 8477-620 | SCREW,MACH-TSTRH M6X1.0X20 Z&BLK | 1 | $0.54 | |
| 11 | 0630-288 | REGULATOR, 3 PHASE-40A DC | 1 | $188.95 | |
| 12 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 13 | 1623-959 | SCREW,SELF TAP 1/4-20X5/8 TYPE F BLK | 1 | $0.26 | |
| 14 | 8427-802 | NUT,HEX FLG-NYL LOCK M8X1.25 CL8 Z&Y | 1 | $0.54 | |
| 15 | 1623-817 | SCREW,SHOULDER-HSTRH M8 X 1.25 X 44.16 | 1 | $1.92 | |
| 16 | 1605-028 | BOOT,STEERING-RH | 1 | $33.95 | |
| 16 | 1605-029 | BOOT,STEERING-LH | 1 | $33.95 | |
| 17 | 8061-628 | RIVET,BLIND-LF AA66 BLACK | 1 | $0.95 | |
| 18 | 1707-862 | R/B 3707-131 | 1 | $447.95 | |
| 19 | 8060-686 | RIVET,BLIND-DH SS64 ZINC | 1 | $0.40 | |
| 20 | 8468-620 | SCREW,MACH-TSPNH M6X1.0X20 CL8.8 BLK | 1 | $0.68 | |
| 21 | 0607-983 | BELLYPAN,CENTER-STAMPED | 1 | $37.95 | |
| 22 | 1607-108 | COVER,OIL DRAIN-4 STRK | 1 | $24.77 | |
| 23 | 1623-052 | NUT,U | 1 | $0.95 | |
| 24 | 1607-063 | PANEL,ACCESS | 1 | $12.35 | |
| 25 | 1623-129 | R/B 2623-166 | 1 | $0.35 | |
| 26 | 6606-953 | PLATE,SKID-CENTER-KIT | 1 | $24.77 | |
| 27 | 1707-596 | BUMPER,FRT-BLK-ASSY | 1 | $109.95 | |
| 28 | 1707-576 | BRKT,MTG-FRT BUMPER-RH-PTD BLK | 1 | $17.87 | |
| 28 | 1707-577 | BRKT,MTG-FRT BUMPER-LH-PTD BLK | 1 | $17.87 | |
| 29 | 1707-578 | TUBE,FRT BUMPER-PTD BLK | 1 | $74.95 |
